5.10.1 Mainboard

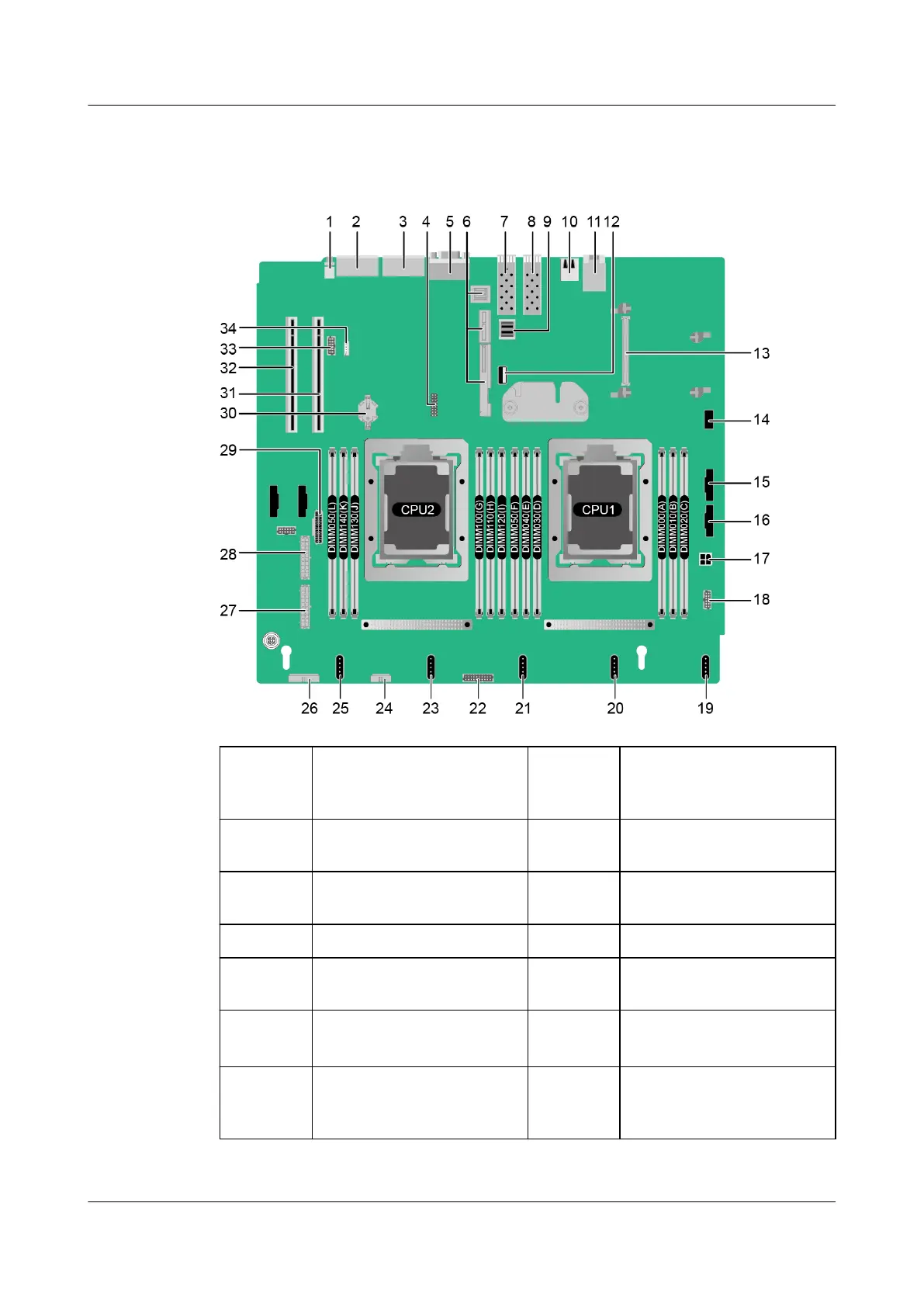

Figure 5-25 2298 V5 mainboard
1 UID button/indicator (S1) 2 Management network
port + management serial
port (J13)
3 LOM GE port (J11) 4 TPM/TCM port (TPM
CONN/J55)
5 VGA connector (VGA
CONN/J112)
6 PCIe riser slots (PCIE
RISER/J1/J8/J9)
7 10GE optical port (J132) 8 10GE optical port (J131)
9 mini-SAS HD connector
(MINIHD PORTA/J86)
10 USB 3.0 port (USB3.0
CONN/J169)
11
I
2
C management network
port (I2C/J10)
a
12 USB 3.0 port (INNER
USB3.0/J173)
13 OCP 2.0 mezzanine card
slot (OCP CARD/J5)
14 Right mounting ear
connector (REAR BOARD/
J186)
