Huawei FusionServer Pro 2298 V5 - Drive Backplane

5.10.2 Drive Backplane
Front Drawer Drive Backplane

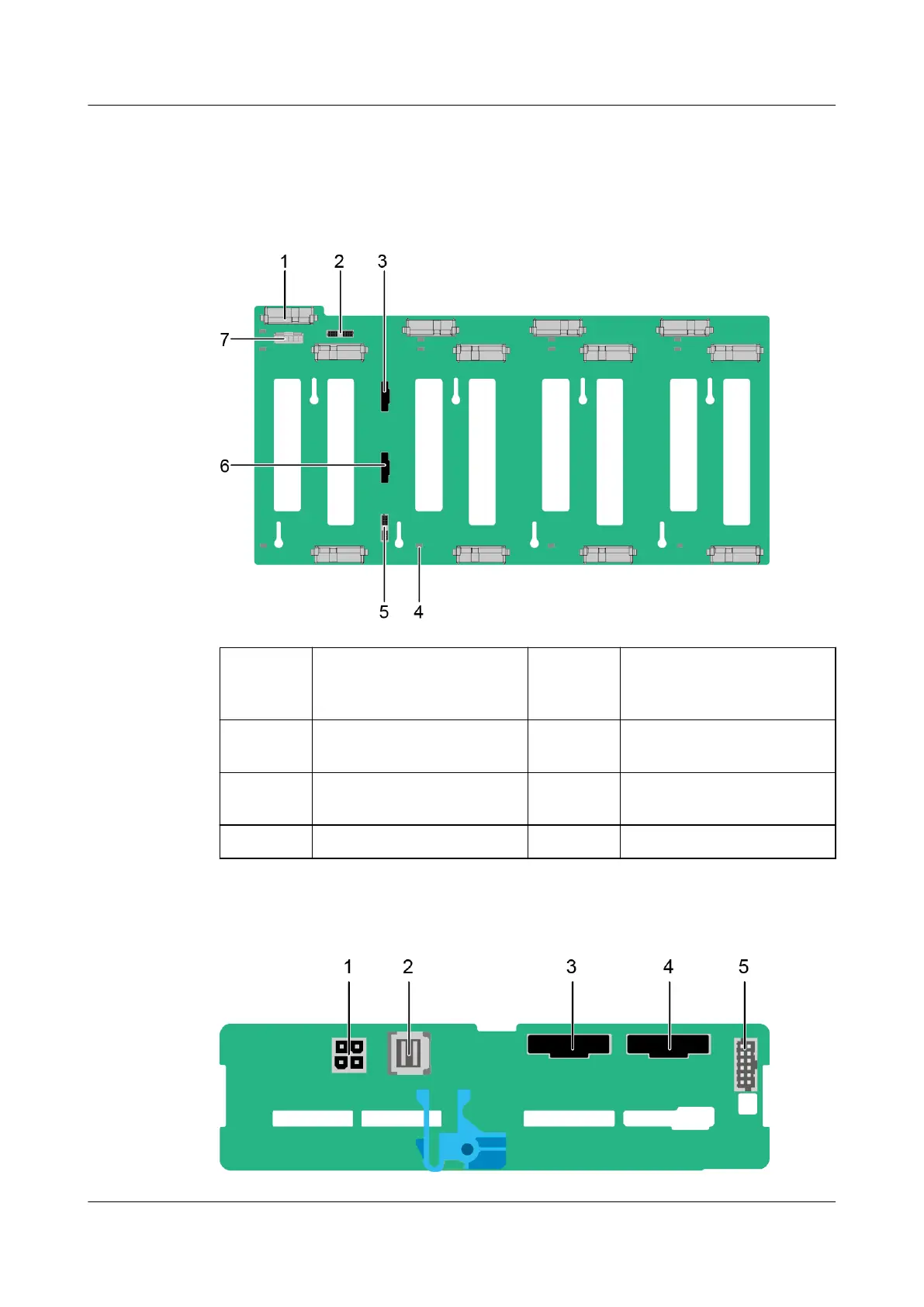

Figure 5-26 Front drawer drive backplane (BOM 03025YVL)
1 Drive connector (J20) 2 Backplane management
signal cable connector
(J1)
3 Slimline connector (PORT
A)
4 Drive identication
indicator
5 Indicator signal cable
connector (J1701)
6 Slimline connector (PORT
B)
7 Power connector (J2) - -
Rear-Drive Backplane
Figure 5-27 Rear-drive backplane (BOM 03024BPV)
