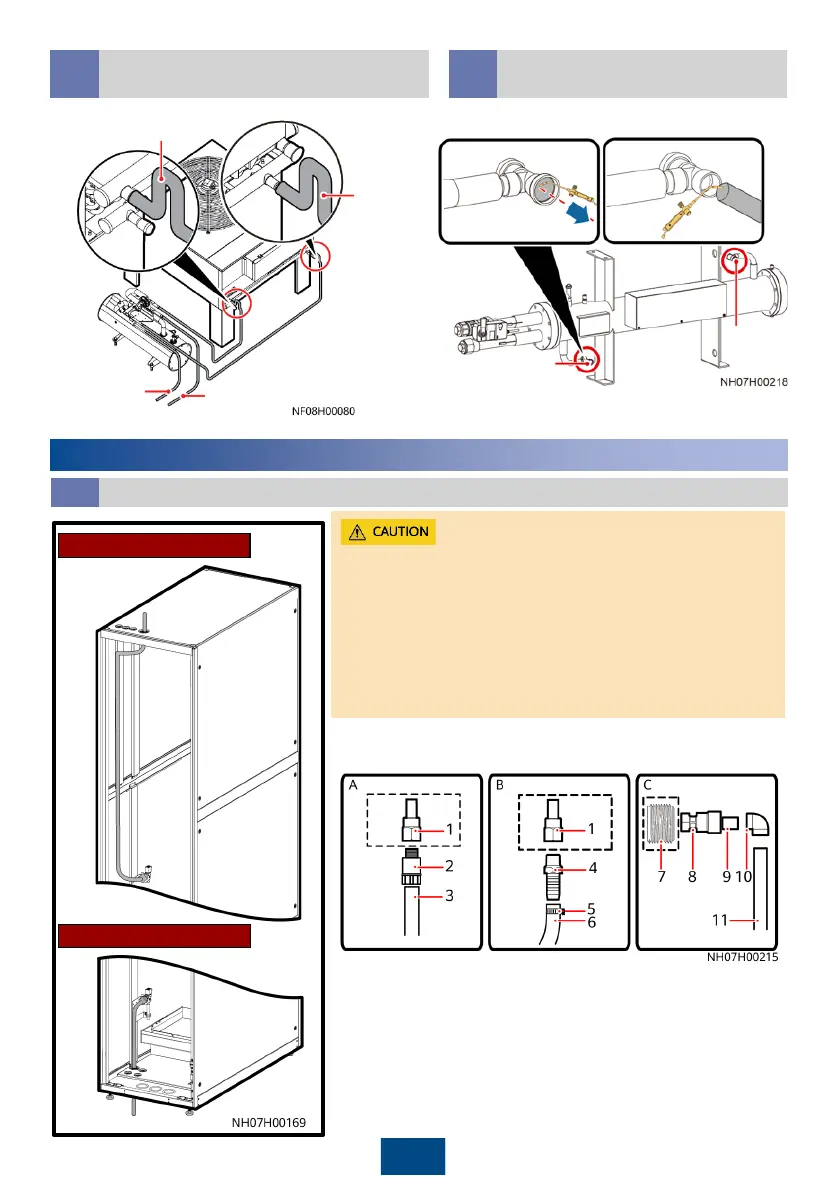

11
To indoor unit
liquid pipe
To indoor unit gas pipe
To outdoor unit gas pipe
To outdoor
unit liquid
pipe
(Optional) Welding the Low
Temperature Component Pipes
7.5
Welding the Water-Cooled
Module
7.6
5/8 inch
liquid pipe
7/8 inch
gas pipe
8
Connecting Water Pipes
(Optional) Connecting the Humidifier Water Inlet Pipe
8.1
1. Clean the water inlet engineering pipes to avoid
impurities entering into the humidifier.
2. When routing pipes from the top, do not route the pipes
over servers or other devices to protect them from being
affected by pipe leaks.
3. Wrap each part of the pipes with thermal insulation
foam.
4. Use supports to secure pipes.
Connection method
Top pipe routing
Bottom pipe routing
(1) Reserved connector
(7) Reserved connector
(2) Rigid pipe conversion
adapter
(8) Active connector
(3) Rigid pipe
(9) Rigid pipe
(4) Pagoda connector
(10) Elbow
(5) Hose clamp (11) Rigid pipe
(6) Hose
