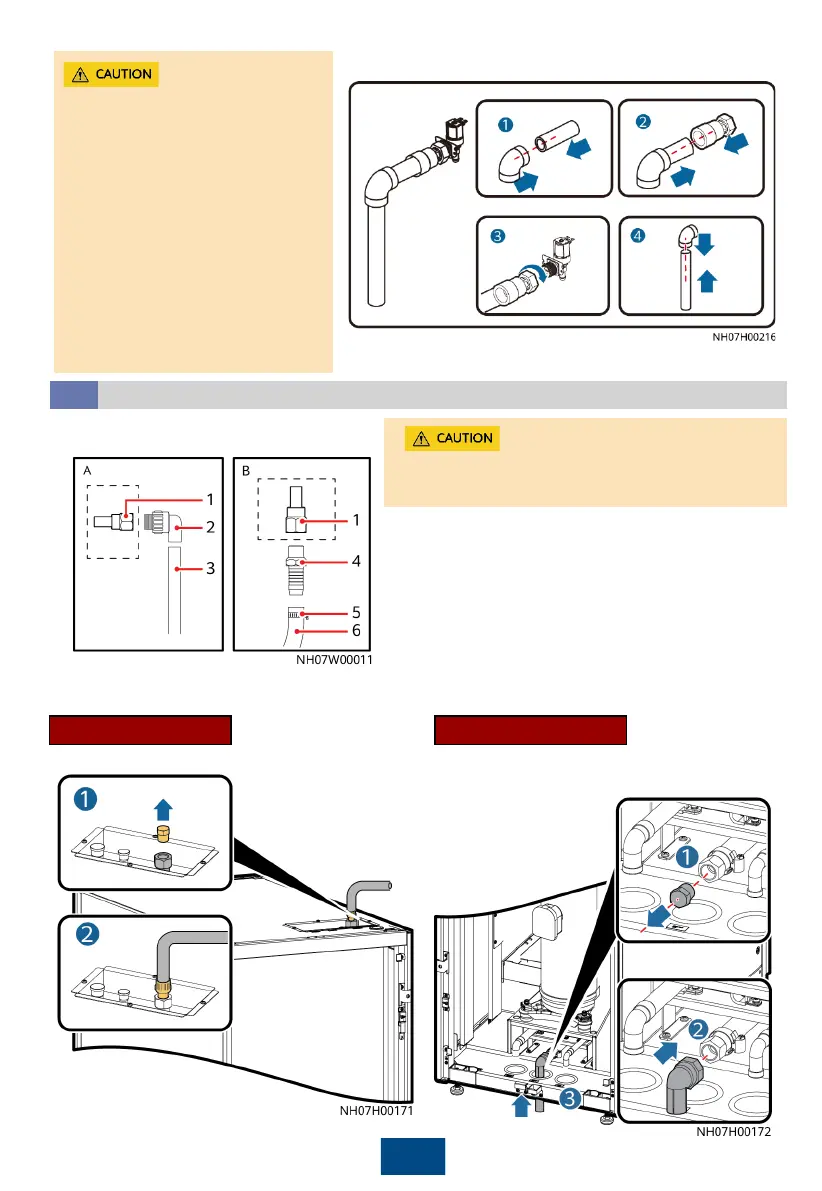

Top pipe routing Bottom pipe routing
In the automatic drainage scenario, you
do not need to perform the first step.
• If a humidifier water inlet hose is
delivered with the smart cooling
product, pull the hose out of the
smart cooling product and
connect the hose, as shown in
Figure 1. For details, refer to
connection methods A and B.
• If a humidifier water inlet hose is
not delivered with the smart
cooling product, connect the
water pipe to the reserved port
of the smart cooling product as
shown in Figure 2 by referring to
connection method C.
Connecting the Drainpipe
8.2
Connection method
(1) Inner-threaded connector (use the sealant for
screw threads)
(2) Adapter
(3) Rigid pipe
(4) Pagoda connector
(5) Hose clamp
(6) Hose
The drainpipes must have gradients (> 1: 100) ,
and stagnant water is not allowed.
