Huawei SUN2000-17KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Issue 12 (2019-06-30)
Copyright © Huawei Technologies Co., Ltd.
19

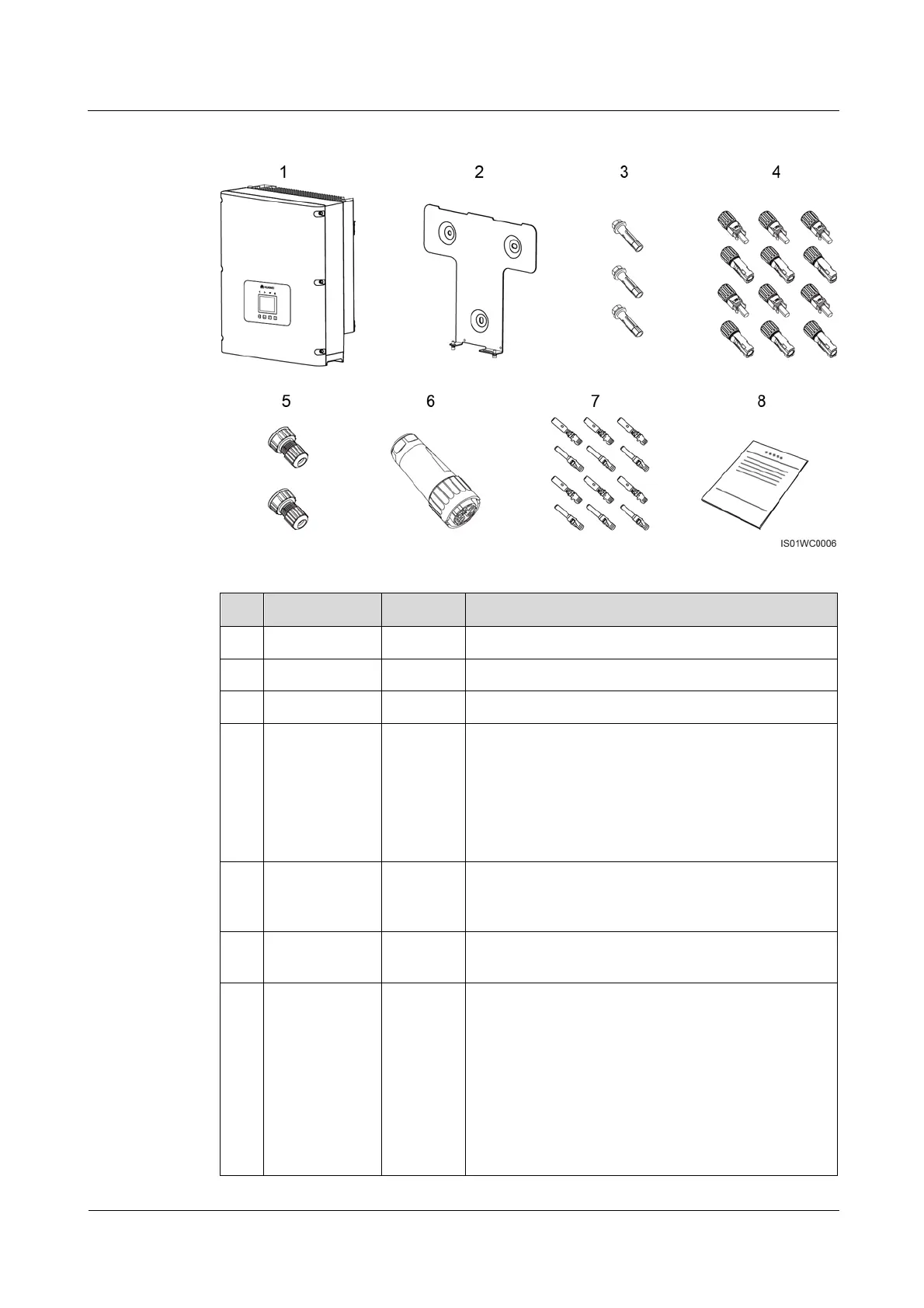

Figure 4-1 Product and accessories
No.
Name
Quantity
Description
1
SUN2000
1
N/A
2
Rear panel
1
N/A
3
Expansion bolt
3
Secures the rear panel to a wall.
4
DC input
connector
8/12
Connects to a DC input power cable.

SUN2000-8KTL/10KTL/12KTL: 8 (4 positive
connectors and 4 negative connectors)

SUN2000-15KTL/17KTL/20KTL/23KTL/28KTL:
12 (6 positive connectors and 6 negative
connectors)
5
Waterproof
RJ45
connector
2
Connects to a communications cable.
6
AC output
connector
1
Connects to an AC output power cable.
7
Metal terminal
8/12
Secures a connector to a DC input power cable.

SUN2000-8KTL/10KTL/12KTL: 8 (4 positive
metal terminals and 4 negative metal terminals)

SUN2000-15KTL/17KTL/23KTL/28KTL: 12 (6
positive metal terminals and 6 negative metal
terminals)
NOTICE
Positive and negative metal terminals are packed with
positive and negative connectors respectively. After

Huawei SUN2000-17KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
MPPT voltage range	200 V - 1000 V
Max. input current per MPPT	26 A
Number of MPPTs	2
AC nominal power	17000 W
Operating temperature range	-25°C to +60°C
Cooling	Natural Convection
Protection rating	IP65
Max. AC power	18700 VA
Rated AC voltage	220 V / 380 V, 230 V / 400 V
