Huawei SUN2000-17KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
7 Man-Machine Interaction
Issue 12 (2019-06-30)
Copyright © Huawei Technologies Co., Ltd.
70

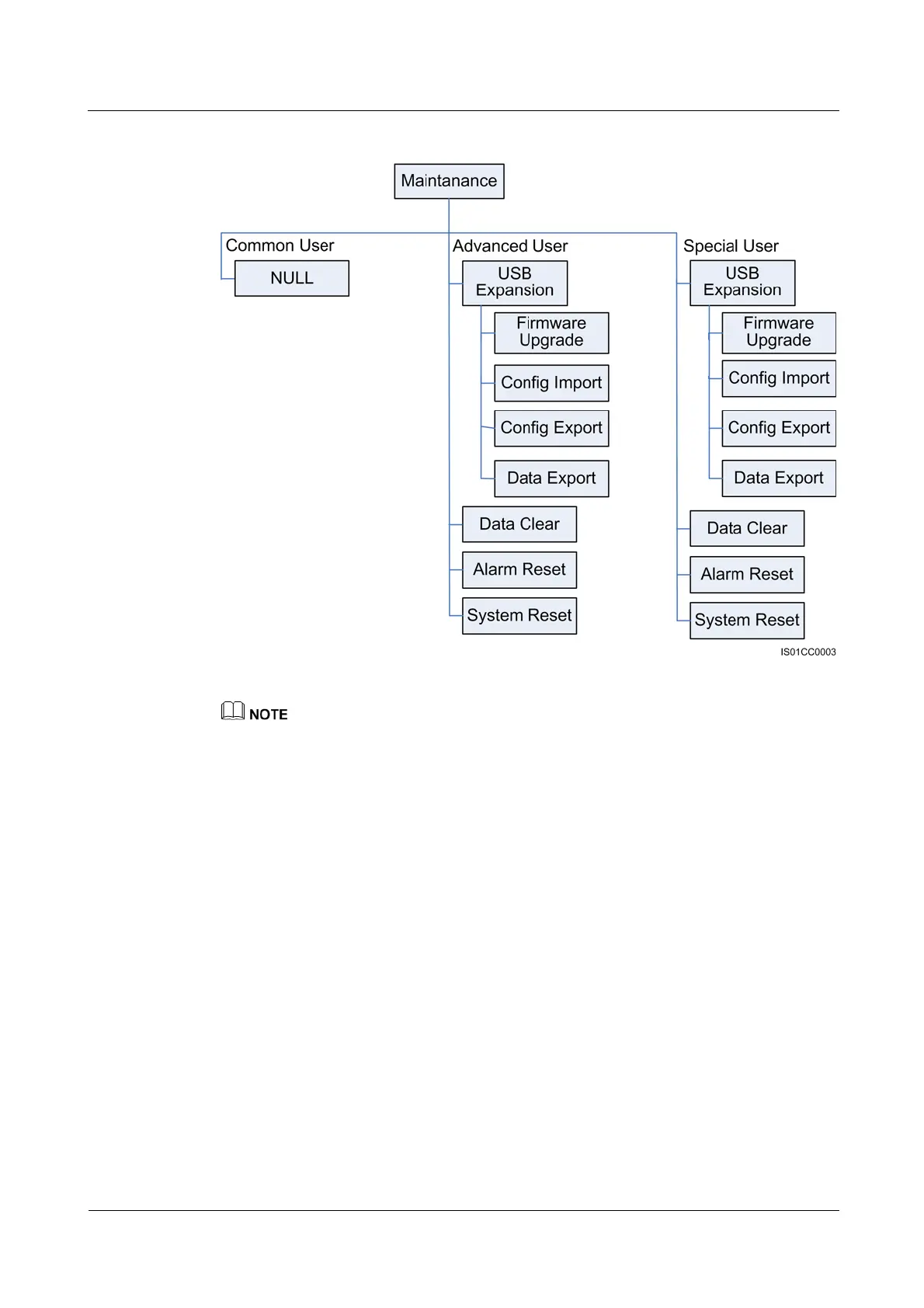

Figure 7-3 Hierarchy of the Maintenance menu
Due to permission restrictions, the submenus under Maintenance will not appear when a user logs in as
a Common User.
7.2 Monitoring Operations
This section describes how to perform monitoring operations, such as viewing system
operating information and setting user parameters, on the monitoring panel.
7.2.1 Viewing System Operating Information
The SUN2000 operating information can be viewed on the monitoring panel. The operating
information includes the daily, monthly, yearly, historical, and total energy yields, insulation
resistance, input data, output data, and internal temperature.
Procedure

The following table lists the procedure for viewing system operating information. The
parameter values in the figures are for reference only.

Huawei SUN2000-17KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
MPPT voltage range	200 V - 1000 V
Max. input current per MPPT	26 A
Number of MPPTs	2
AC nominal power	17000 W
Operating temperature range	-25°C to +60°C
Cooling	Natural Convection
Protection rating	IP65
Max. AC power	18700 VA
Rated AC voltage	220 V / 380 V, 230 V / 400 V
