Huawei SUN2000-17KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Issue 12 (2019-06-30)
Copyright © Huawei Technologies Co., Ltd.
20
No.
Name
Quantity
Description
unpacking, keep the positive and negative ones separate to
avoid confusion.
8
Documentation
1
N/A

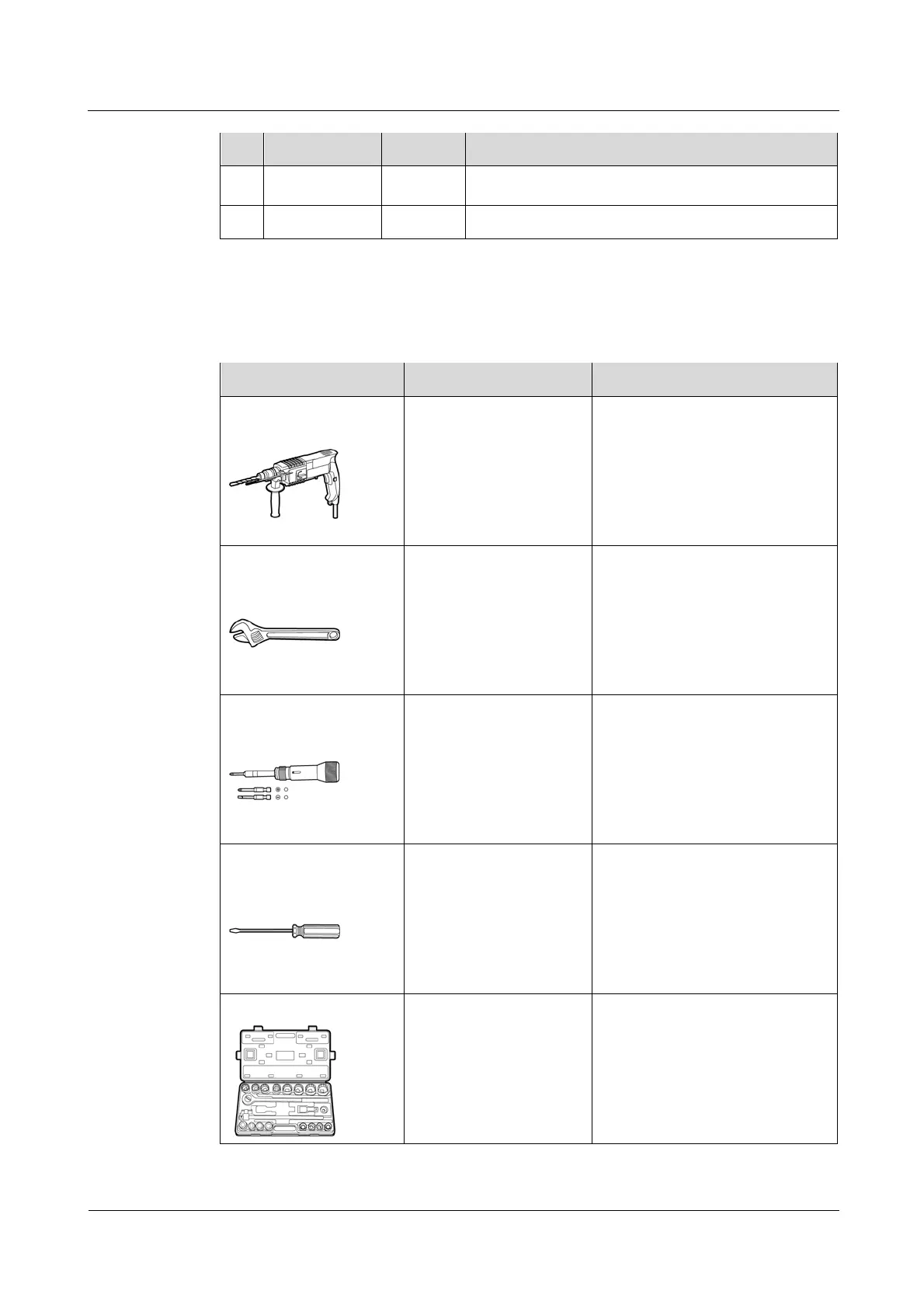

4.2 Tools
Prepare the tools required for installation and cable connections.
Tool
Model
Function
Hammer drill
With a drill bit of Φ14
mm
Drills holes.
Adjustable wrench
With an open end ≥ 32
mm
Tightens expansion bolts.
Torque screwdriver

Hexagon socket head:
5 mm

Flat head: M6

Hexagon socket head: Secures
screws to mechanical parts.

Flat head: Removes plastic
screws from lifting holes.
Flat-head screwdriver
3 x 100

Head width: 3-3.5 mm

Pole length (excluding
the handle): at least
100 mm

Large handle

Tightens or loosens screws
when installing AC power
cables.

Removes AC connectors from
the SUN2000.
Socket wrench
With an open end of 10
mm
Tightens ground bolts.

Huawei SUN2000-17KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
MPPT voltage range	200 V - 1000 V
Max. input current per MPPT	26 A
Number of MPPTs	2
AC nominal power	17000 W
Operating temperature range	-25°C to +60°C
Cooling	Natural Convection
Protection rating	IP65
Max. AC power	18700 VA
Rated AC voltage	220 V / 380 V, 230 V / 400 V
