5 Electrical Connections
Issue 12 (2019-06-30)
Copyright © Huawei Technologies Co., Ltd.
48

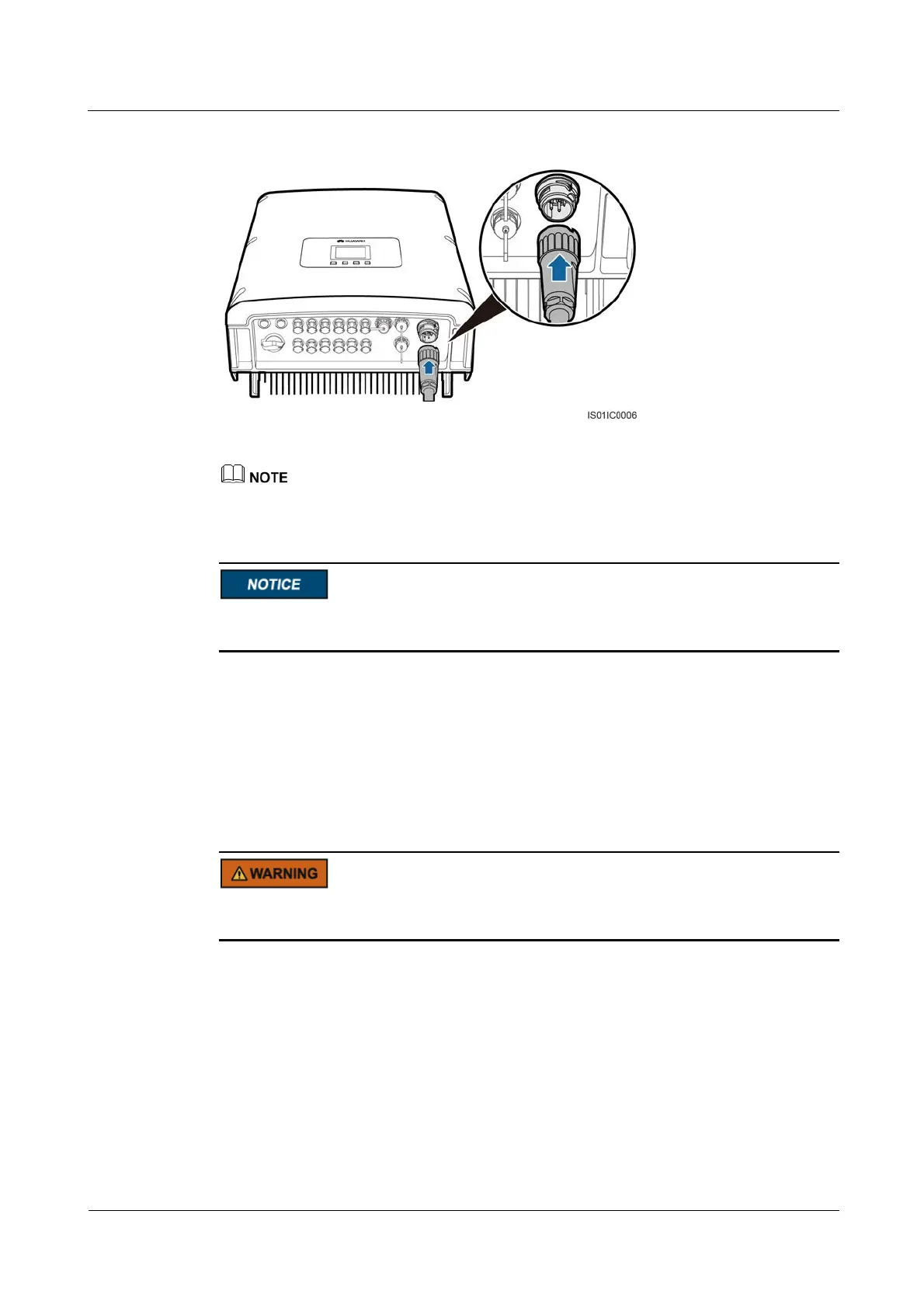

Figure 5-14 Connecting an AC output connector
The AC output connector is securely connected to the AC output wiring terminal after the bayonet
coupling snaps into place.
Reserve a margin of more than 0.5 meter for the cable at the AC output power cable connector
to reduce the cable terminal disconnection due to external force.
----End
Follow-up Procedure
To remove the AC output connector from the SUN2000, press down the locking plate on the
AC output wiring terminal using a flat-head screwdriver as shown in Figure 5-15. Rotate the
AC output connector counterclockwise.
Before removing the AC output connector, switch off the circuit breaker between the
SUN2000 and the power grid.

Huawei SUN2000-17KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
MPPT voltage range	200 V - 1000 V
Max. input current per MPPT	26 A
Number of MPPTs	2
AC nominal power	17000 W
Operating temperature range	-25°C to +60°C
Cooling	Natural Convection
Protection rating	IP65
Max. AC power	18700 VA
Rated AC voltage	220 V / 380 V, 230 V / 400 V
