Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
2 Overview
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7

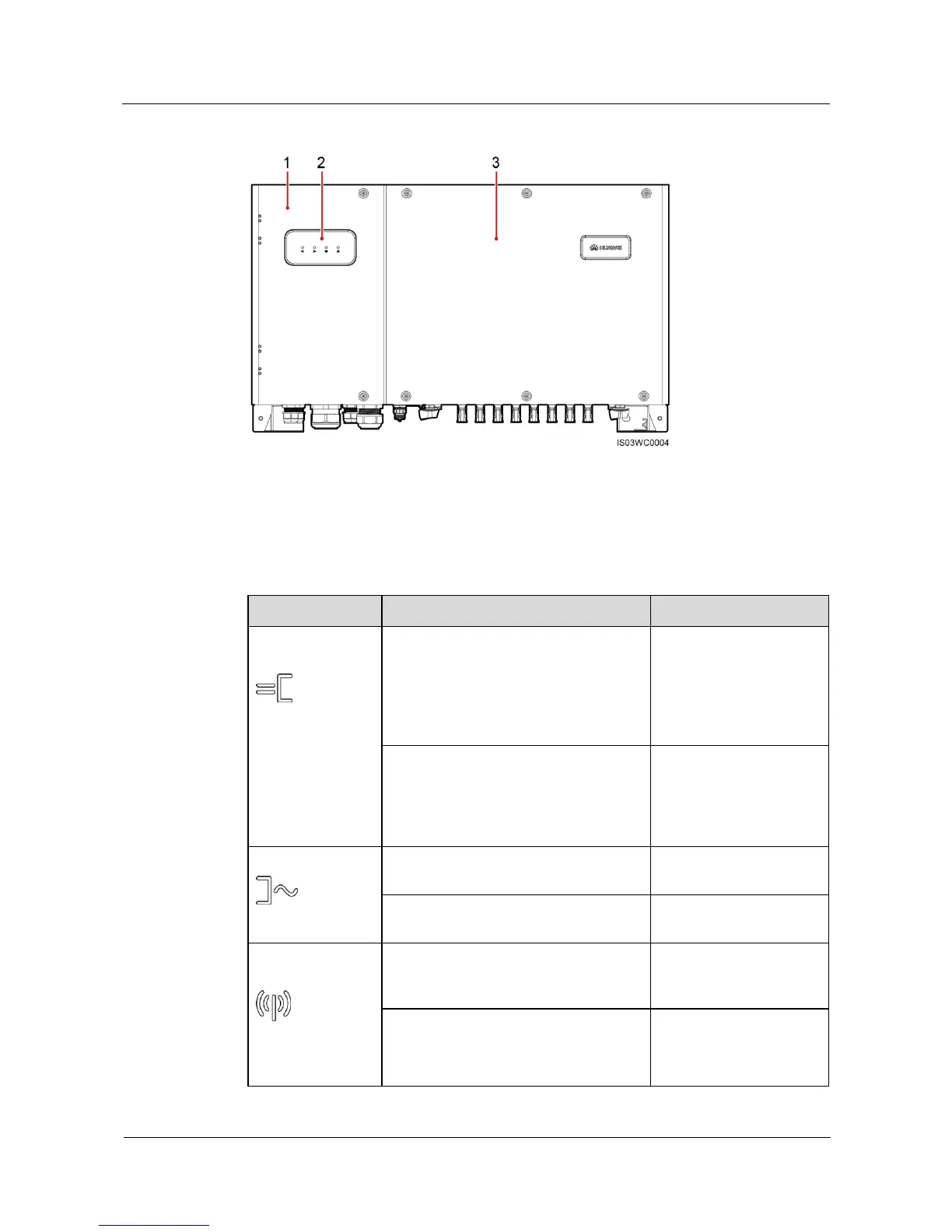

Figure 2-5 SUN2000 front view
(1) Maintenance compartment door
(2) LED indicator
(3) Host panel
Table 2-2 describes the LED indicators.
Table 2-2 LED indicator description (from left to right)
Indicator
Status
Meaning
PV connection
indicator
Green on
At least one PV string is
properly connected, and
the DC input voltage of
the corresponding MPPT
circuit is higher than or
equal to 200 V.
Green off
The SUN2000
disconnects from all PV
strings, or the DC input
voltage of each MPPT
circuit is less than 200 V.
Grid-tied indicator
Green on
The SUN2000 connects
to the power grid.
Green off
The SUN2000 does not
connect to the power grid.
Communications
indicator
Blinking green at short intervals (on for
0.5s and then off for 0.5s)
The SUN2000 receives
data over RS485/PLC/FE
communication.
Green off
The SUN2000 has not
received data over
RS485/PLC/FE
communication for 10

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
