Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
5 Connecting Cables
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
66

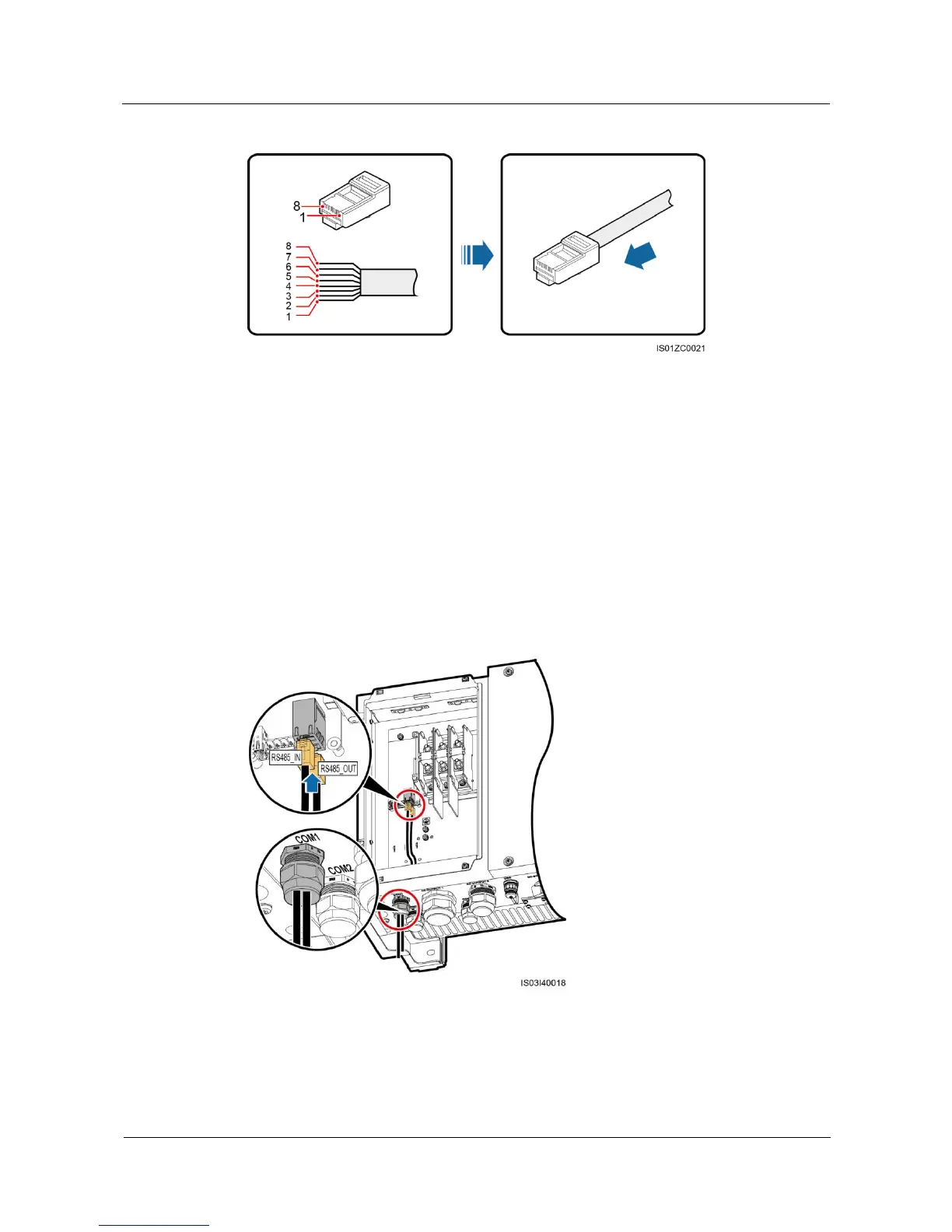

Figure 5-32 Connecting wires to an RJ45 connector
(1) White-and-orange
(2) Orange
(3) White-and-green
(4) Blue
(5) White-and-blue
(6) Green
(7) White-and-brown
(8) Brown
Step 2 Crimp the RJ45 connector using a crimping tool.
Step 3 Remove the locking cap from the COM1 waterproof cable connector at the SUN2000 bottom
and remove the plug from the locking cap.
Step 4 Route the cables through the locking caps and then the COM1 port at the SUN2000 bottom.
Step 5 Insert the RJ45 connector into the RJ45 network port in the SUN2000 maintenance
compartment.
Figure 5-33 Connecting communications cables
Step 6 Bind communications cables after connecting them.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
