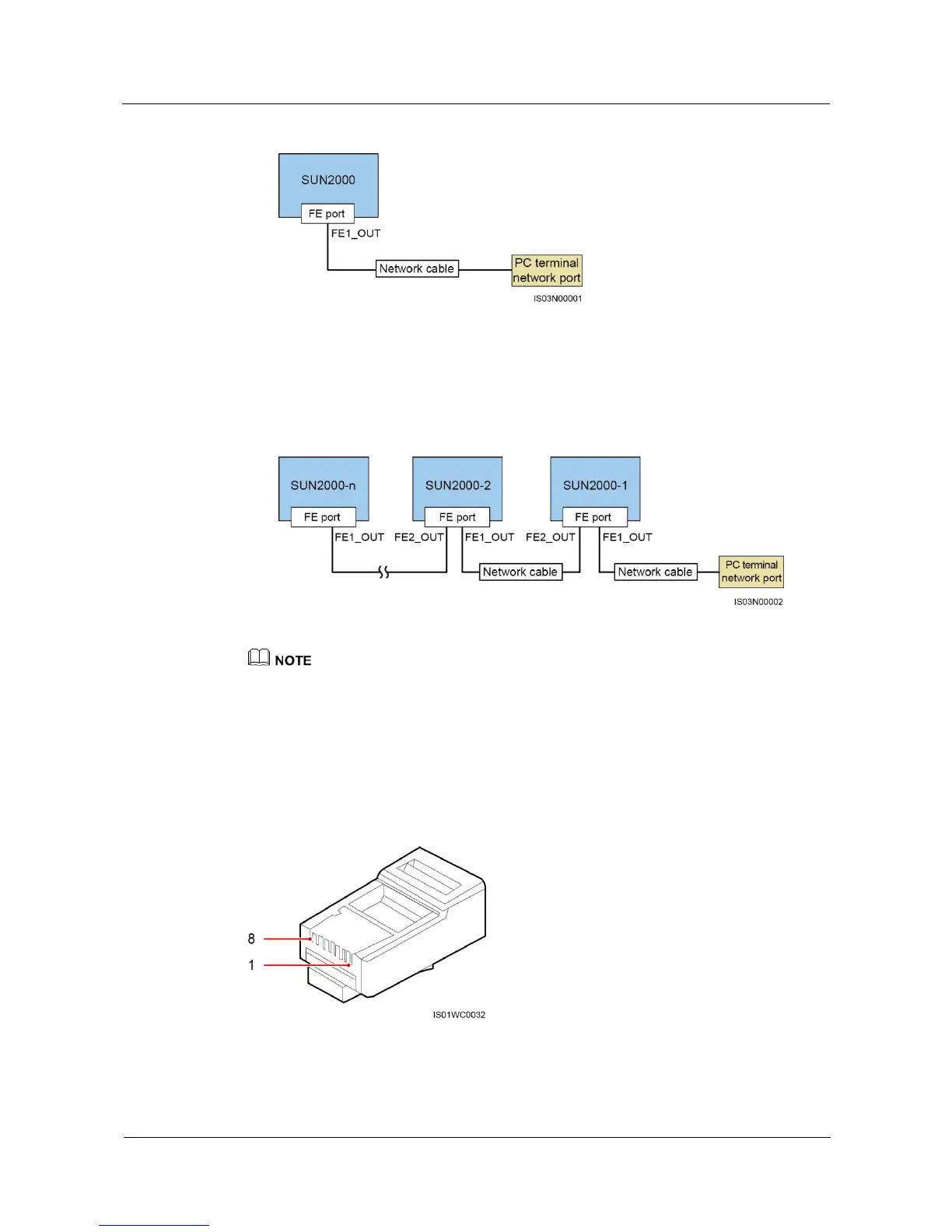

Figure 5-35 FE communication mode for a single SUN2000

Figure 5-36 shows the communication mode for multiple SUN2000s.
If multiple SUN2000s are used, connect all the SUN2000s in daisy chain mode over a
network cable.
Figure 5-36 FE communication mode for multiple SUN2000s

The FE communication distance between two adjacent SUN2000s on the daisy chain cannot exceed
100 meters.

A daisy chain supports a maximum of 10 SUN2000s to be connected for communication.
RJ45 Connector Pin Definitions
Figure 5-37 shows an RJ45 connector.
Figure 5-37 RJ45 connector
The FE communications cable is connected over standard network cables. A standard network
cable can be 568A or 568B. The network cables used in the same PV grid-tied power

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
