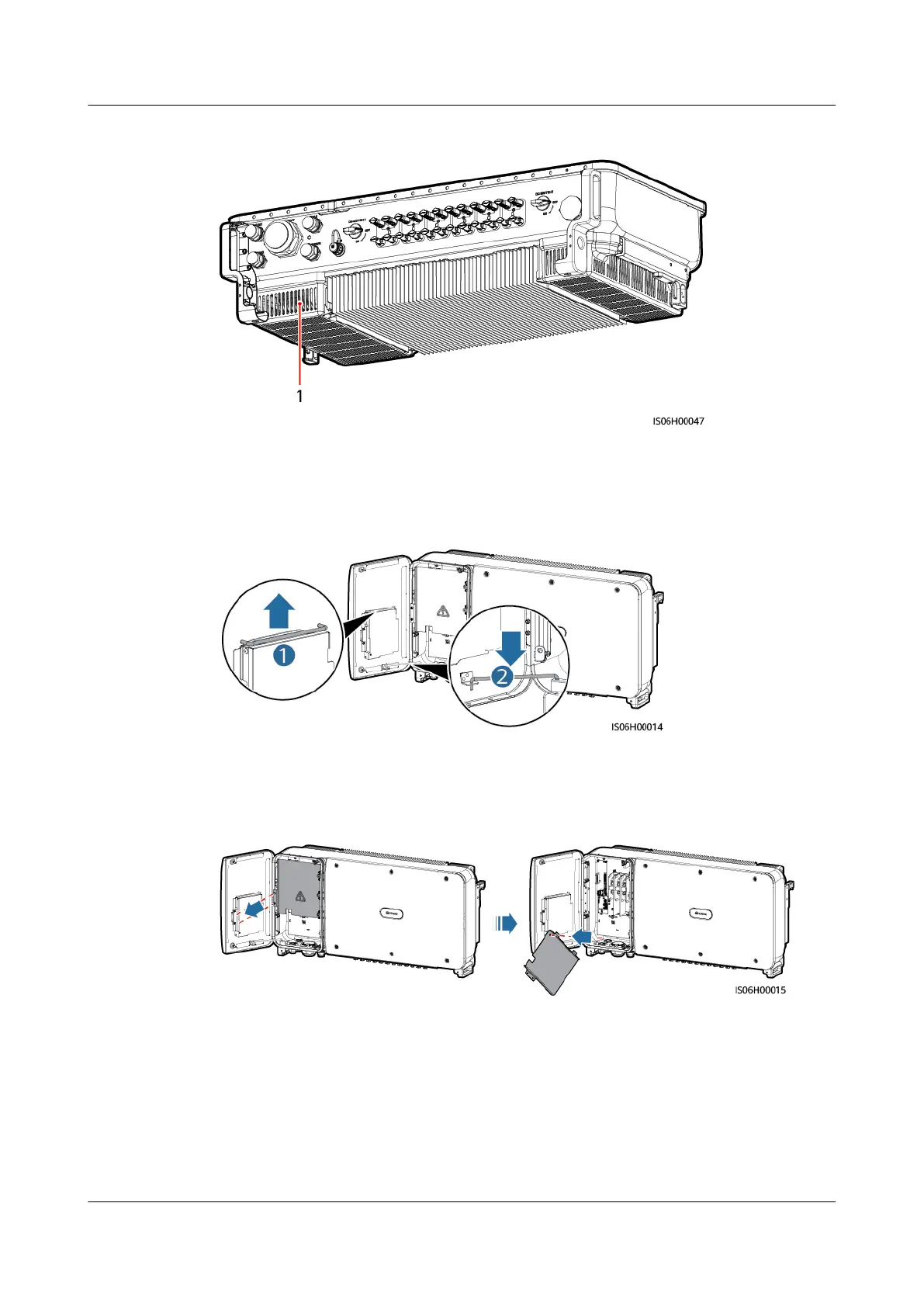

Figure 5-4 Position for spare screws
(1) Position for spare screws
Step 2 Open the maintenance compartment door and keep it open with the support bar.
Figure 5-5 Keeping the door open with a support bar
Step 3 Remove the cover and hang it on the hook of the door.
Figure 5-6 Removing a cover
----End
SUN2000-(70KTL, 75KTL)-C1
User Manual 5 Electrical Connections
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 39
