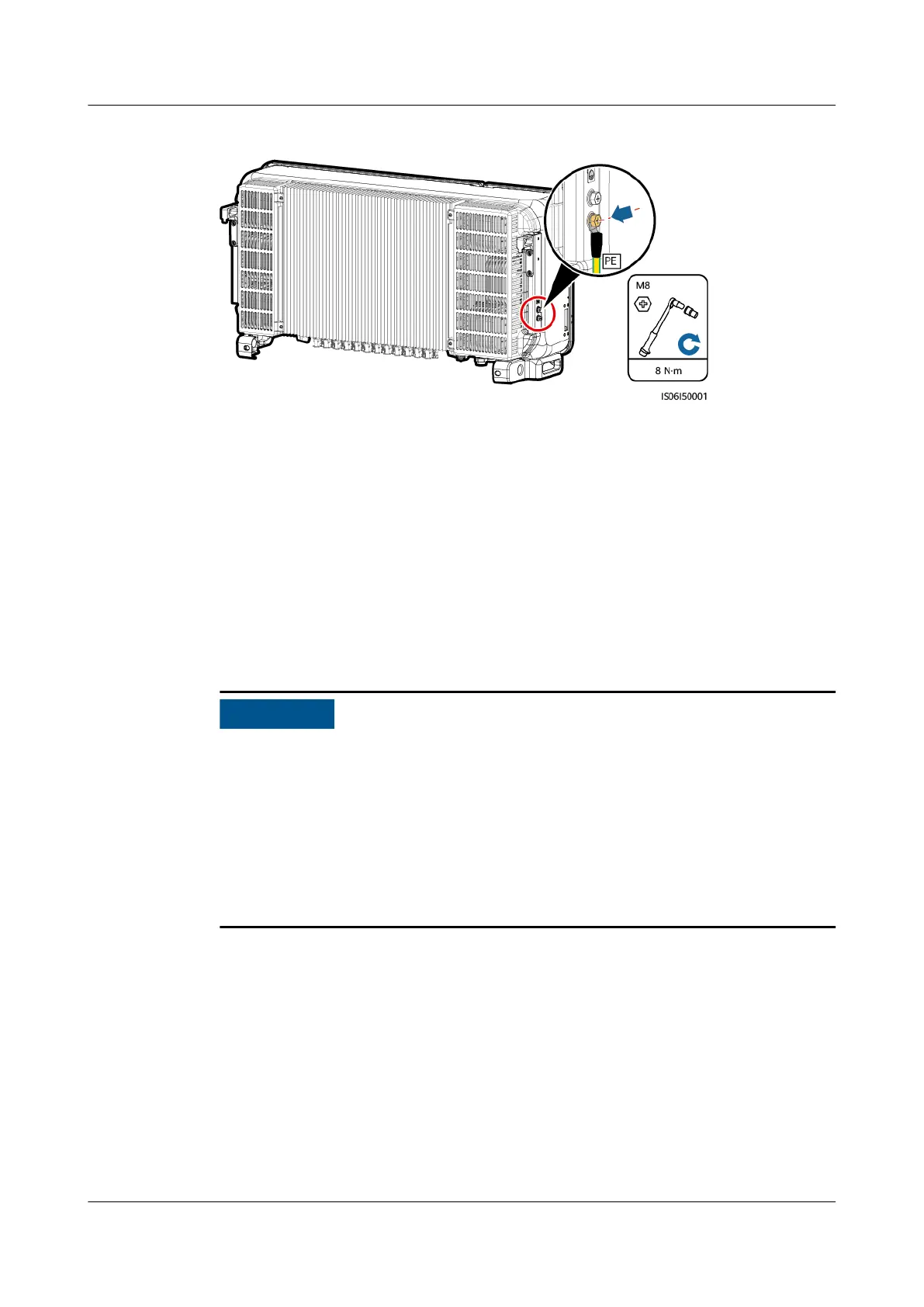

Figure 5-7 Connecting a PE cable
Step 3 (Optional) To enhance the corrosion resistance of a ground terminal, apply silica
gel or paint around the terminal.
----End
Installing the AC Output Power Cable
Step 1 Remove the locking cap from the AC OUTPUT cable gland and then remove the
plug.
Step 2 Route the cable through the cable gland.
NO TICE
1. Select appropriate rubber ttings based on the outer diameter of the AC power
cable to ensure proper sealing.
2. There are two types of waterproof connectors for the AC OUTPUT port. The
dimensions depend on the SUN2000 that is used.
3. To avoid damaging the rubber
tting, do not route a cable with a crimped OT
terminal directly through the rubber
tting.
4. Adjusting a cable when the thread-lock sealing nut is tightened will shift the
rubber
tting, which will aect the Ingress Protection Rating of the device.
