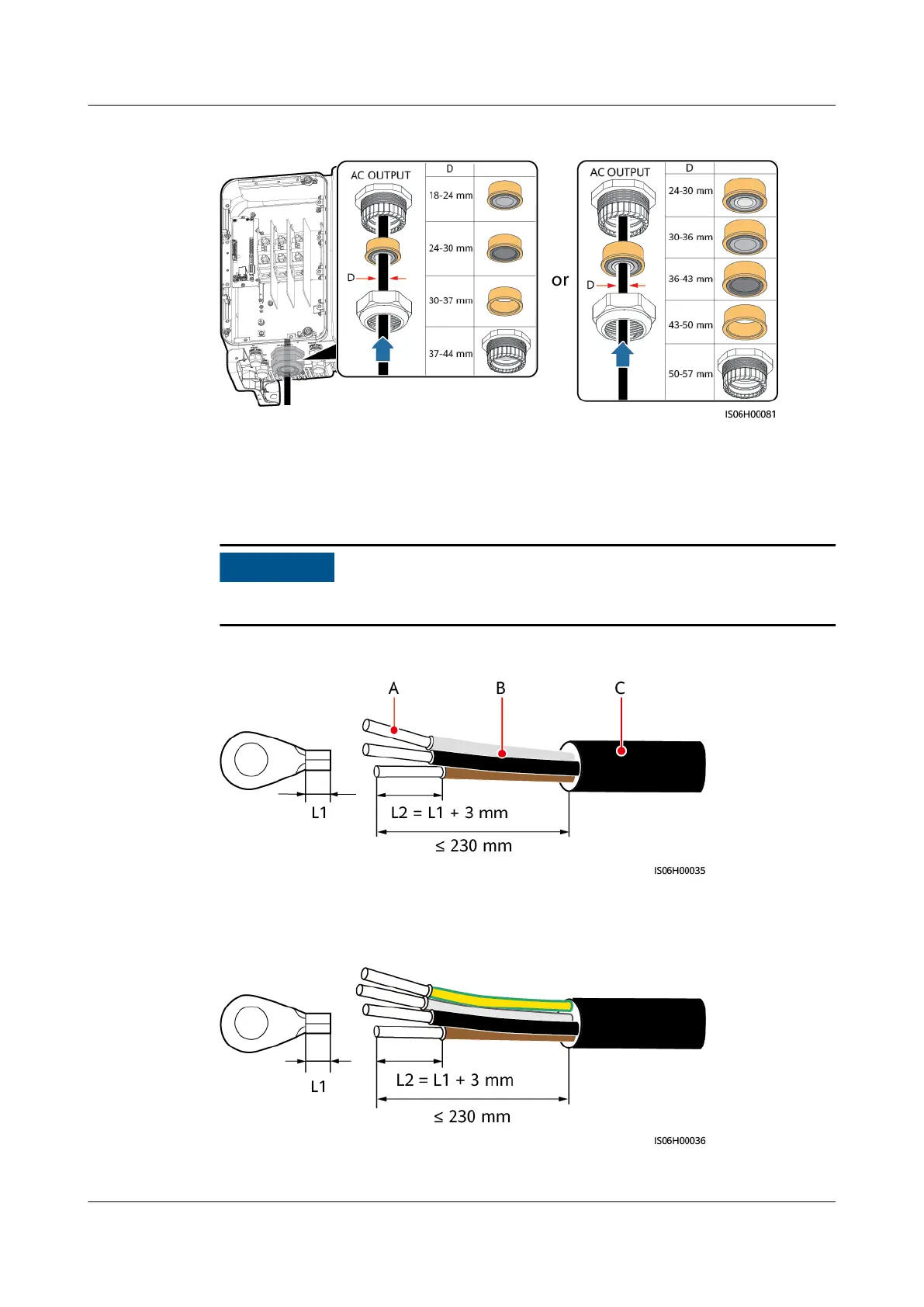

Figure 5-8 Routing a cable
Step 3 Remove an appropriate length of the jacket and insulation layer from the AC
output power cable using a wire stripper.
Ensure that the jacket is in the maintenance compartment.
Figure 5-9 Three-core cable
(A) Core wire
(B) Insulation layer (C) Jacket
Figure 5-10 Four-core cable
SUN2000-(70KTL, 75KTL)-C1
User Manual 5 Electrical Connections
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 43
