Connecting Cables to the Terminal Block
Step 1 Remove an appropriate length of the jacket and core wire insulation layer from
the communications cable using a wire stripper.

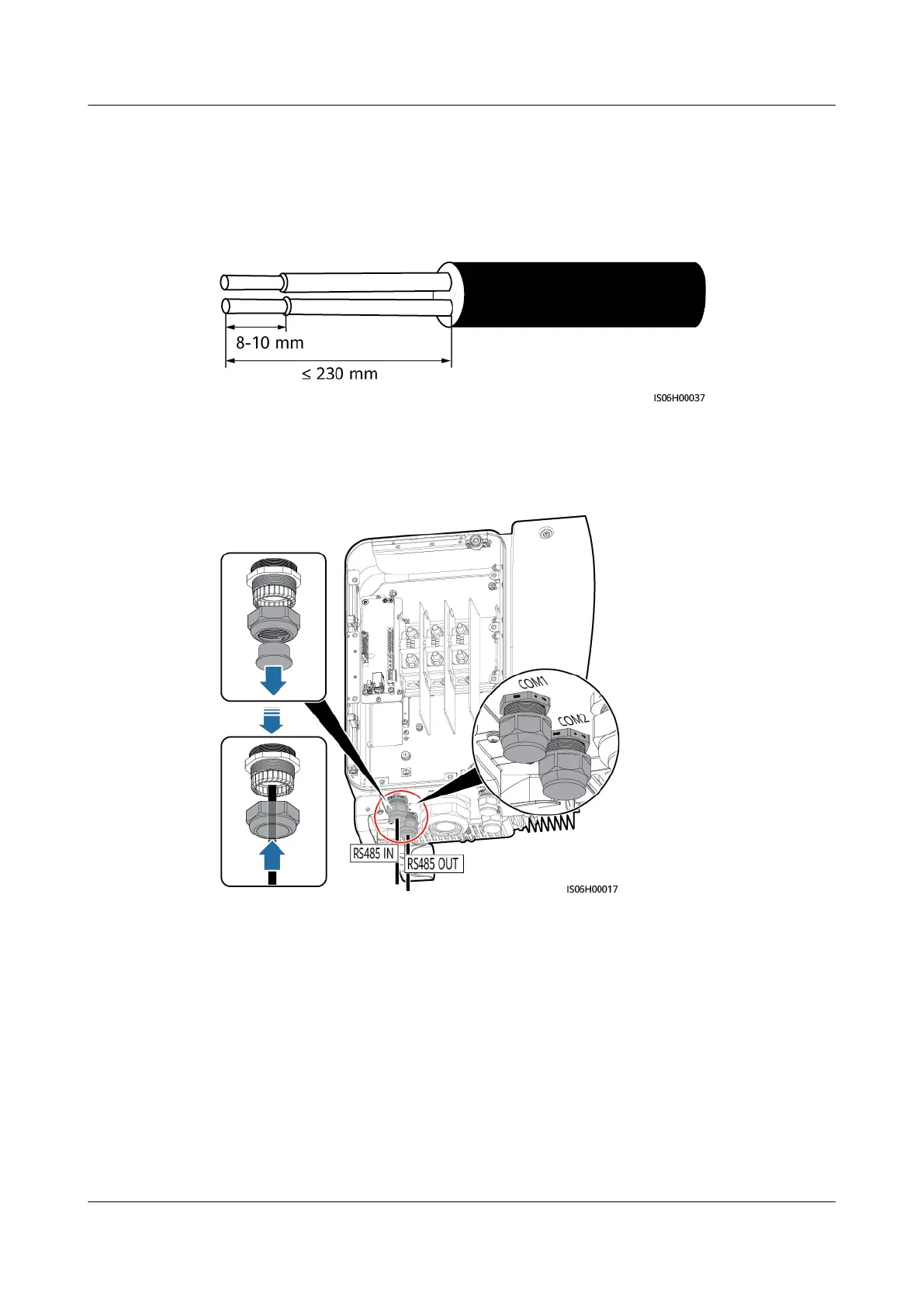

Figure 5-23 Stripping an RS485 communications cable
Step 2 Route the communications cable through the cable gland.
Figure 5-24 Routing a cable
Step 3 Remove the cable terminal base from the terminal block, and connect the
communications cable to the terminal base.
SUN2000-(70KTL, 75KTL)-C1
User Manual 5 Electrical Connections
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 55
