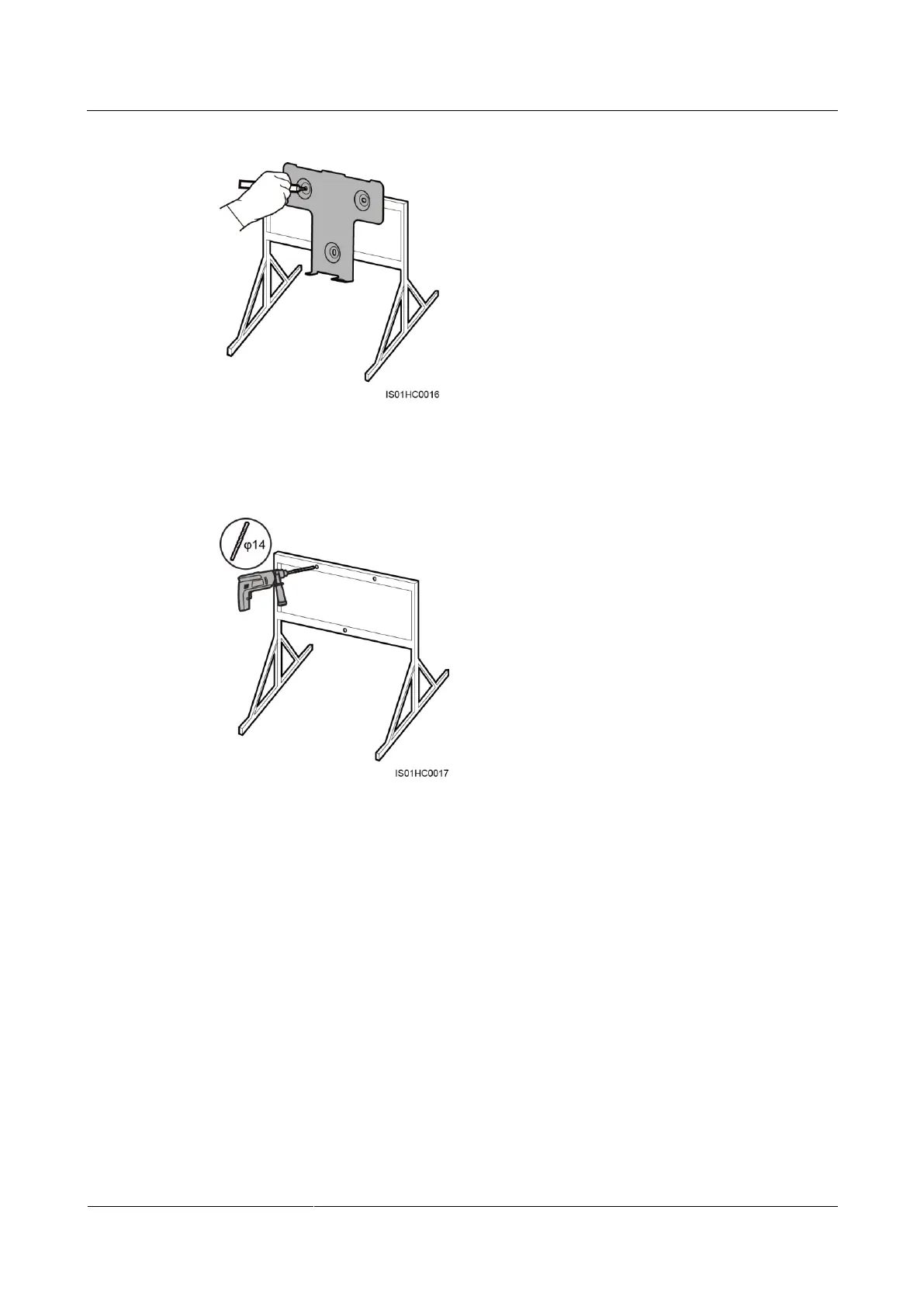

Figure 4-7 Determining hole positions
Step 2 Drill holes using a hammer drill, as shown in Figure 4-8.
Figure 4-8 Drilling holes
Step 3 Align the rear panel with hole positions, insert M10x60 bolts into the holes, and tighten the
bolts to a torque of 30 N·m using a torque wrench, as shown in Figure 4-9.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
