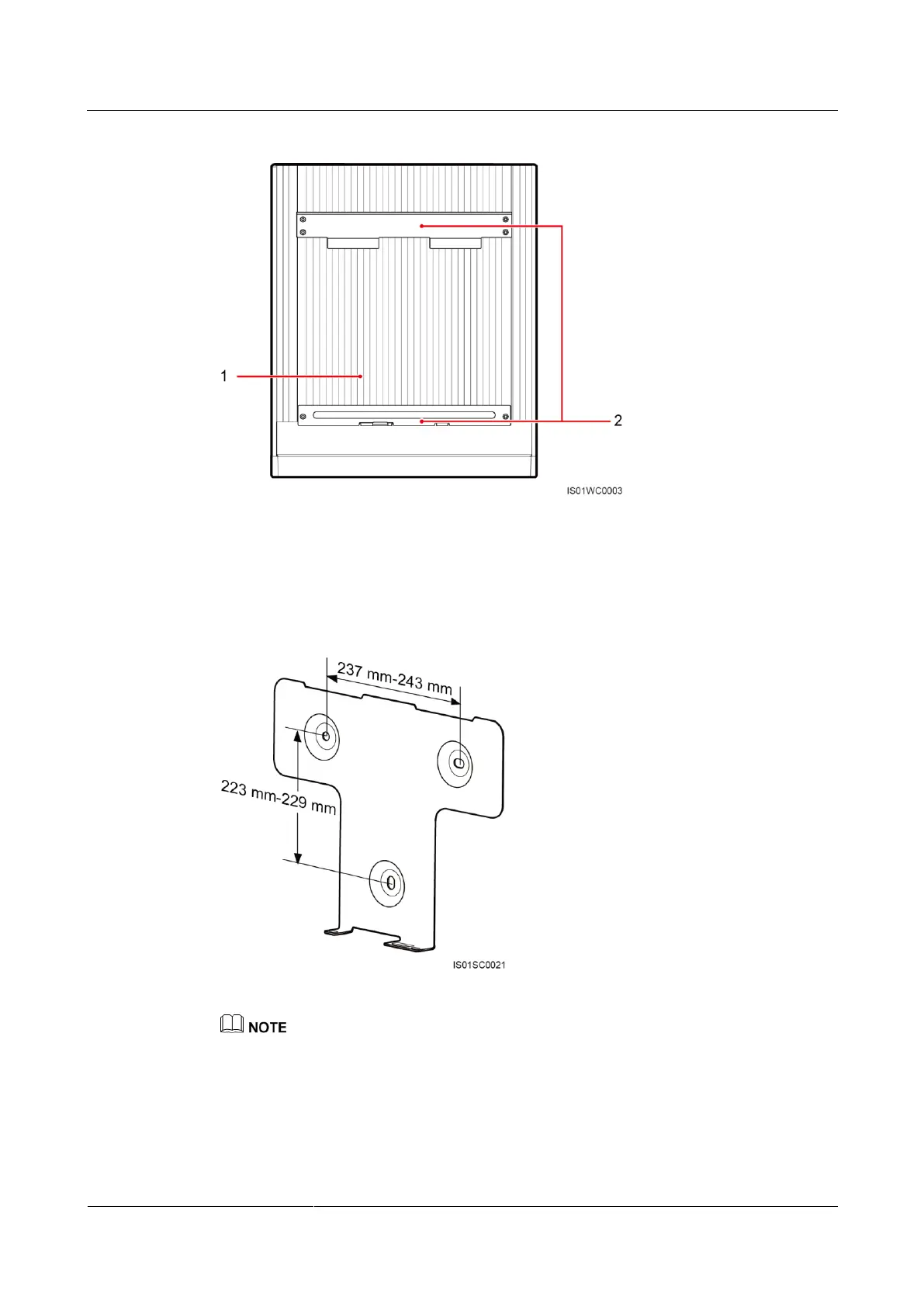

Figure 4-14 SUN2000 rear view
(1) Heat sink
(2) Mounting bracket
Figure 4-15 shows the dimensions of holes in the rear panel of the SUN2000.
Figure 4-15 Dimensions of holes in the SUN2000 rear panel

If the installation location is near the ground, connect the PGND cable to the ground before
installing the SUN2000. For details, refer to 5.1 Connecting PGND Cables.

It is recommended that the SUN2000 be installed at eye level to facilitate operation and
maintenance.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
