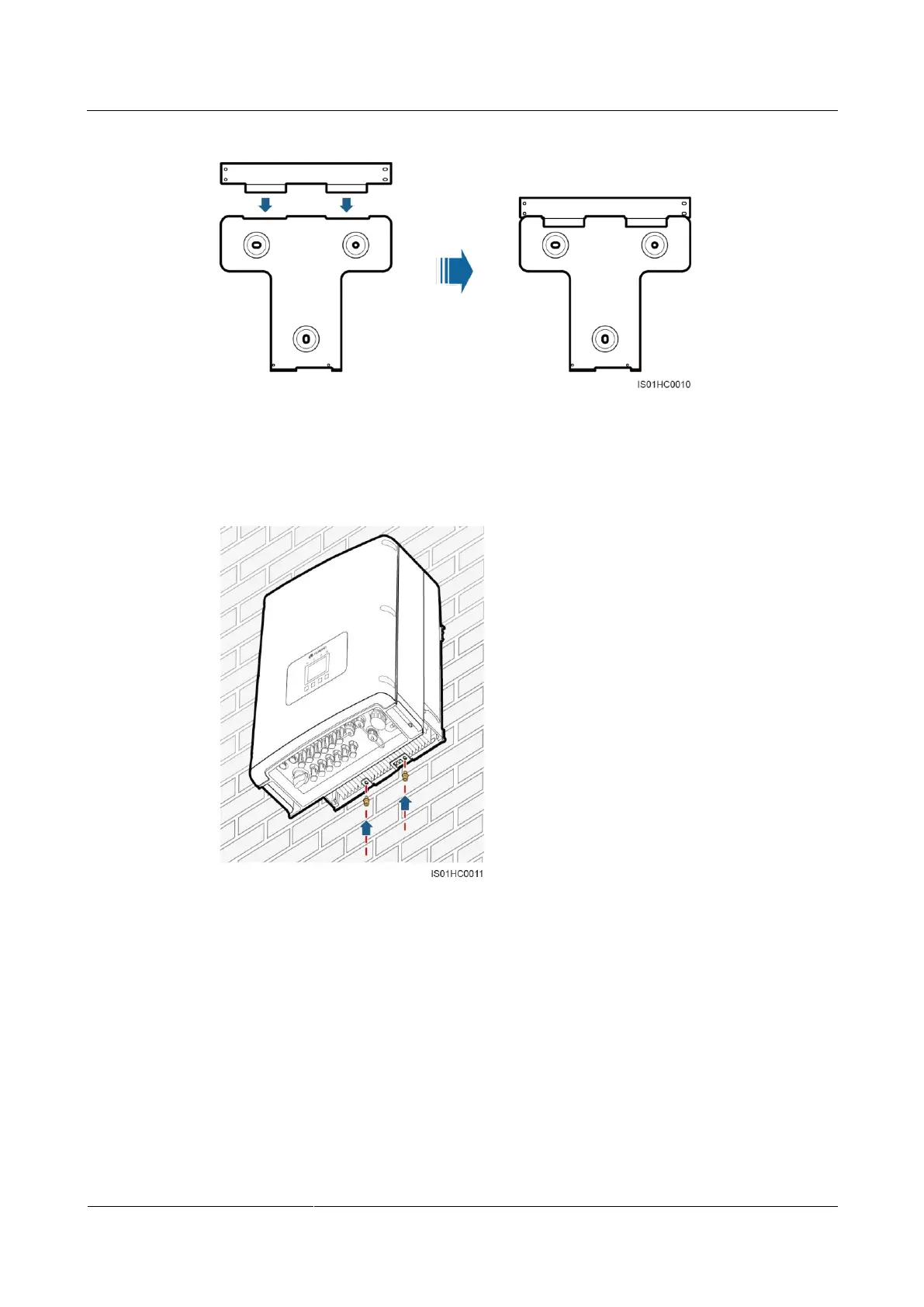

Figure 4-24 Mounting the SUN2000 on the rear panel (rear view)
Step 10 Tighten the two hexagon screws at the bottom of the SUN2000 to a torque of 5 N·m, as
shown in Figure 4-25.
Figure 4-25 Tightening hexagon screws
Step 11 (Optional) Install an antitheft lock, as shown in Figure 4-26.
The antitheft lock secures the SUN2000 to the rear panel to prevent theft.
