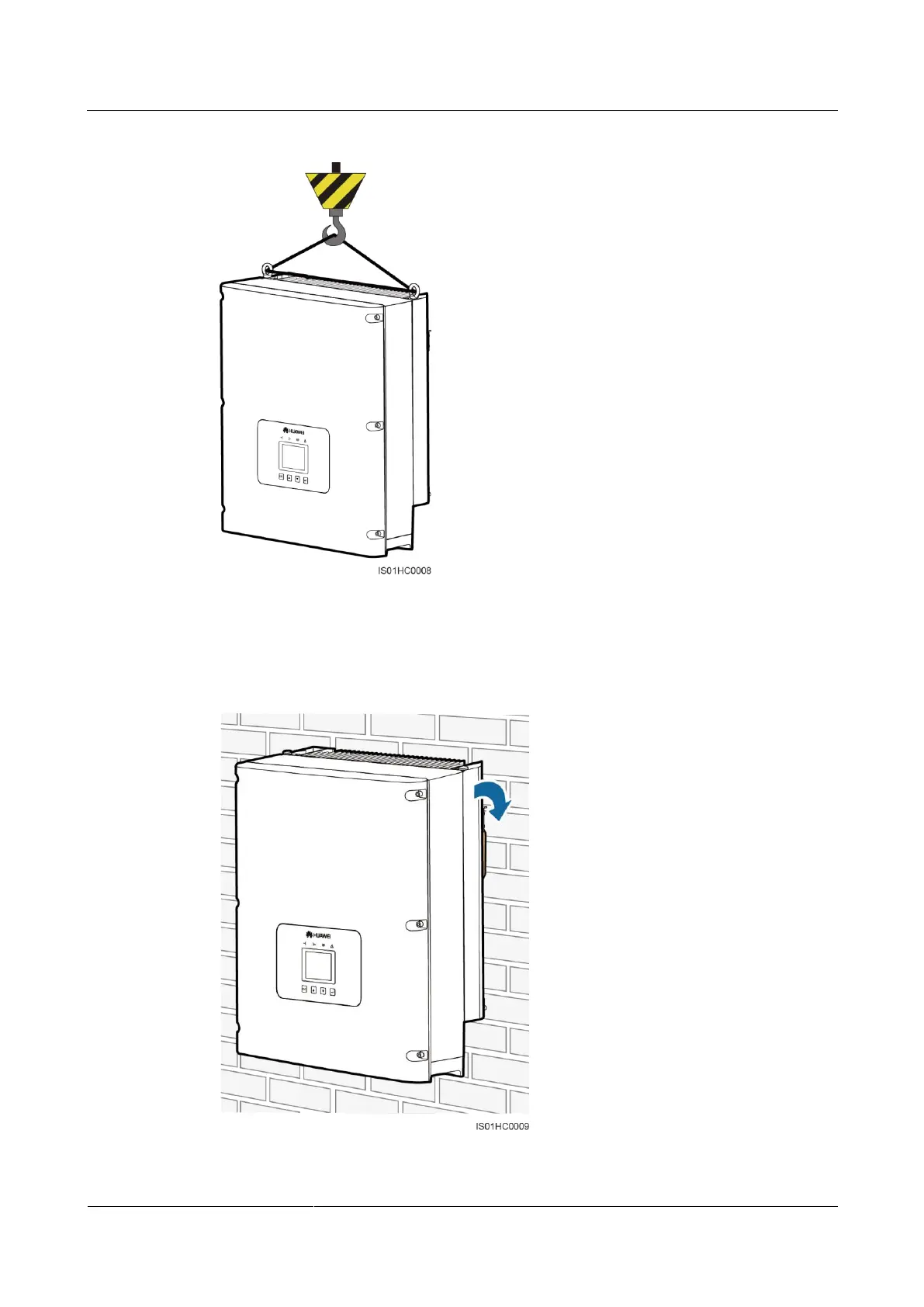

Figure 4-22 Hoisting the SUN2000
Step 9 Mount the SUN2000, keeping the mounting brackets in alignment with the rear panel, as
shown in Figure 4-23 and Figure 4-24.
Figure 4-23 Mounting the SUN2000 on the rear panel (front view)
