Table 5-2 describes the recommended DC input cable specifications.
Table 5-2 Recommended DC input cable specifications
Cable Type
Cross-sectional Area (mm
2
)
Cable Outer
Diameter (mm)
Range
Recommended
Value
Common PV cable
4-6
4
4.5-7.8
Highly rigid cables, such as armored cables, are not recommended because bending may
cause poor contact.

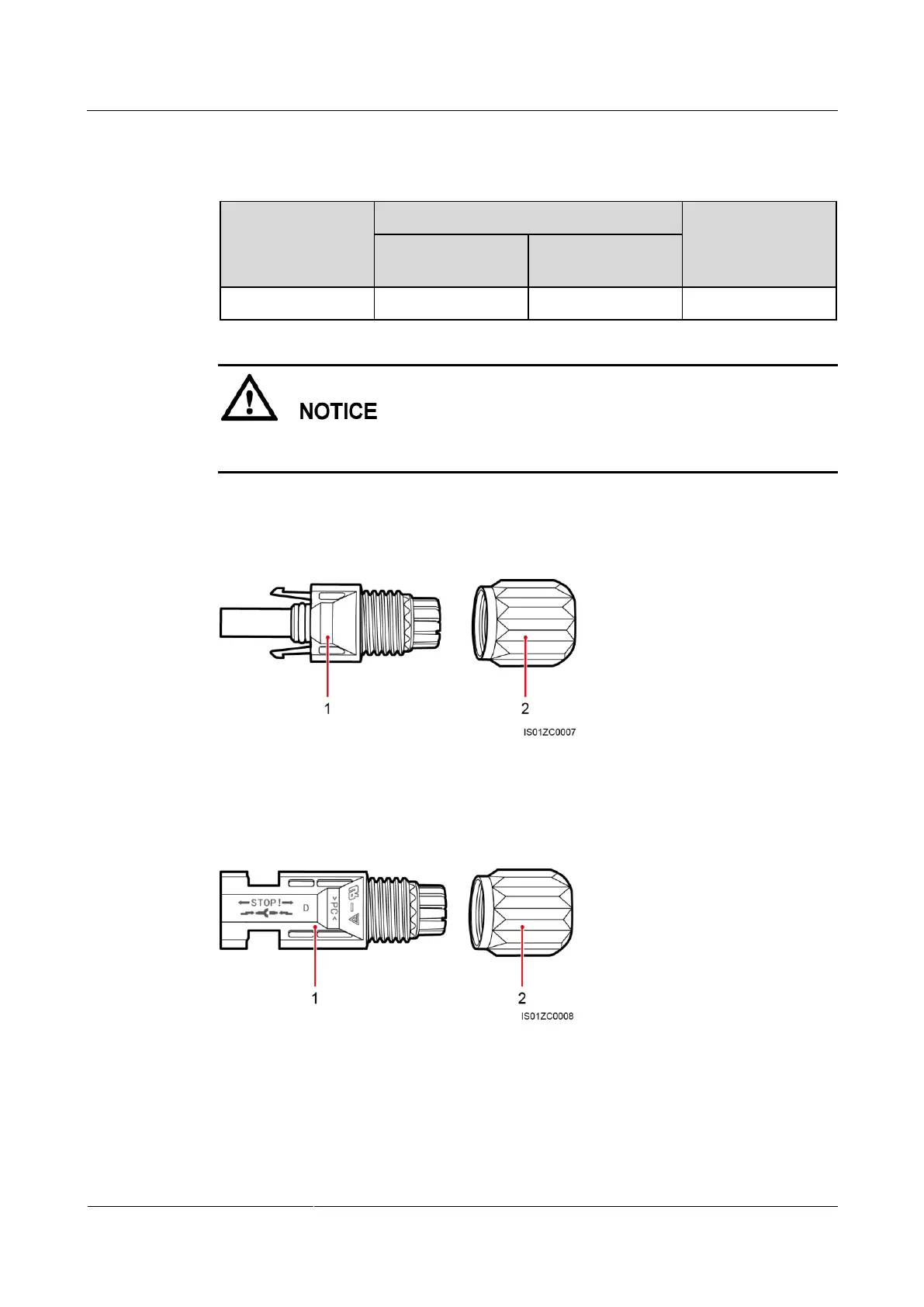

The positive and negative DC input connectors are used, as shown in Figure 5-17 and Figure
5-18.
Figure 5-17 Positive connector composition
(1) Insulation housing
(2) Locking nut
Figure 5-18 Negative connector composition
(1) Insulation housing
(2) Locking nut

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
