SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
54
Positive and negative metal terminals are packed with positive and negative connectors
respectively. After unpacking, keep the positive and negative ones separate to avoid
confusion.
Procedure
Step 1 Unscrew the locking nuts from the positive and negative connectors.
Step 2 Remove an appropriate length of the insulation layer from the positive and negative power
cables using a wire stripper, as shown in Figure 5-19.

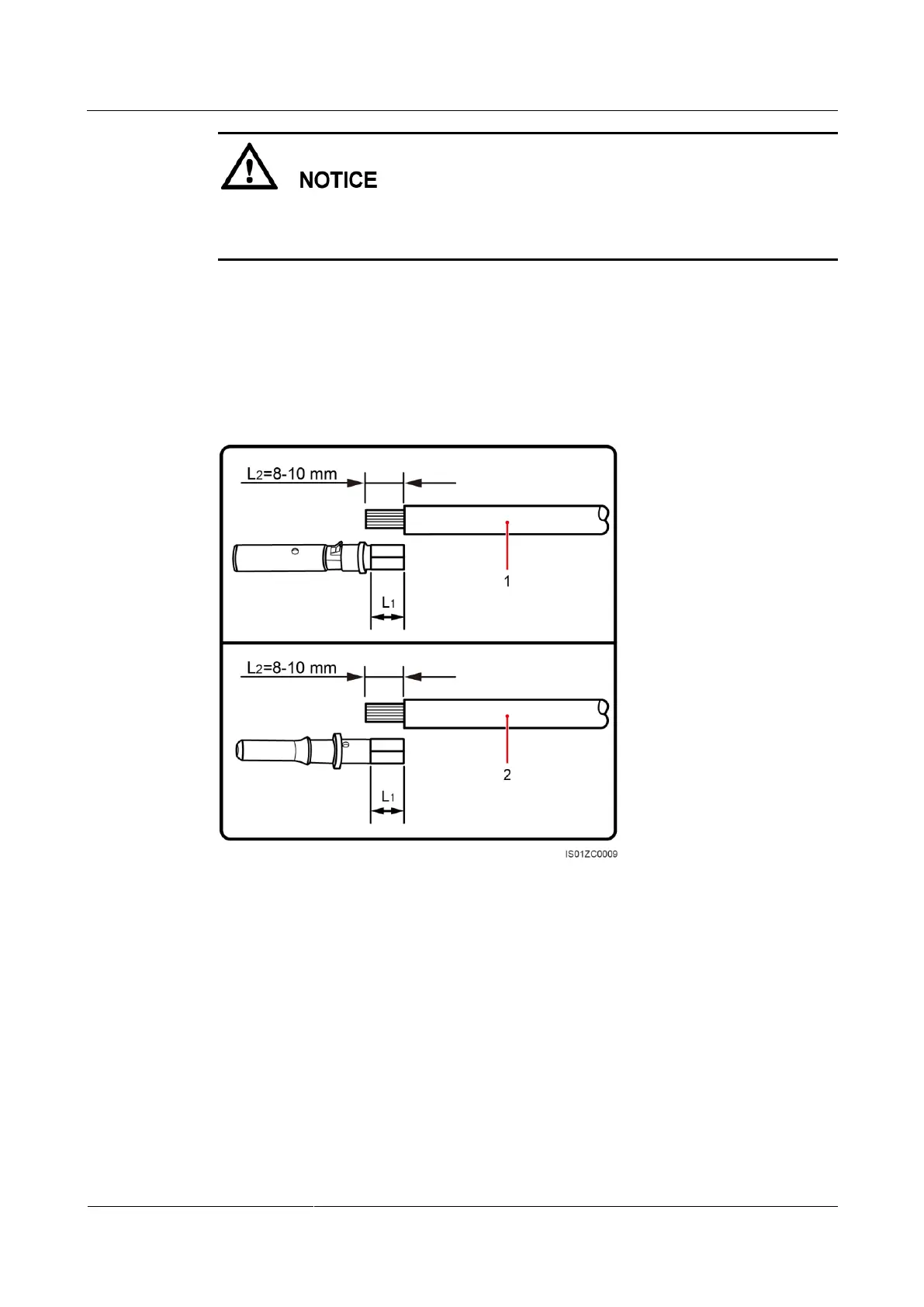

Figure 5-19 Stripped length
(1) Positive power cable
(2) Negative power cable
Step 3 Insert the exposed area of the positive and negative power cables into the metal terminals of
the positive and negative connectors respectively and crimp them using a crimping tool, as
shown in Figure 5-20. Ensure that the cables are crimped tightly such that they cannot be
pulled out by a force less than 400 N.
