SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
55

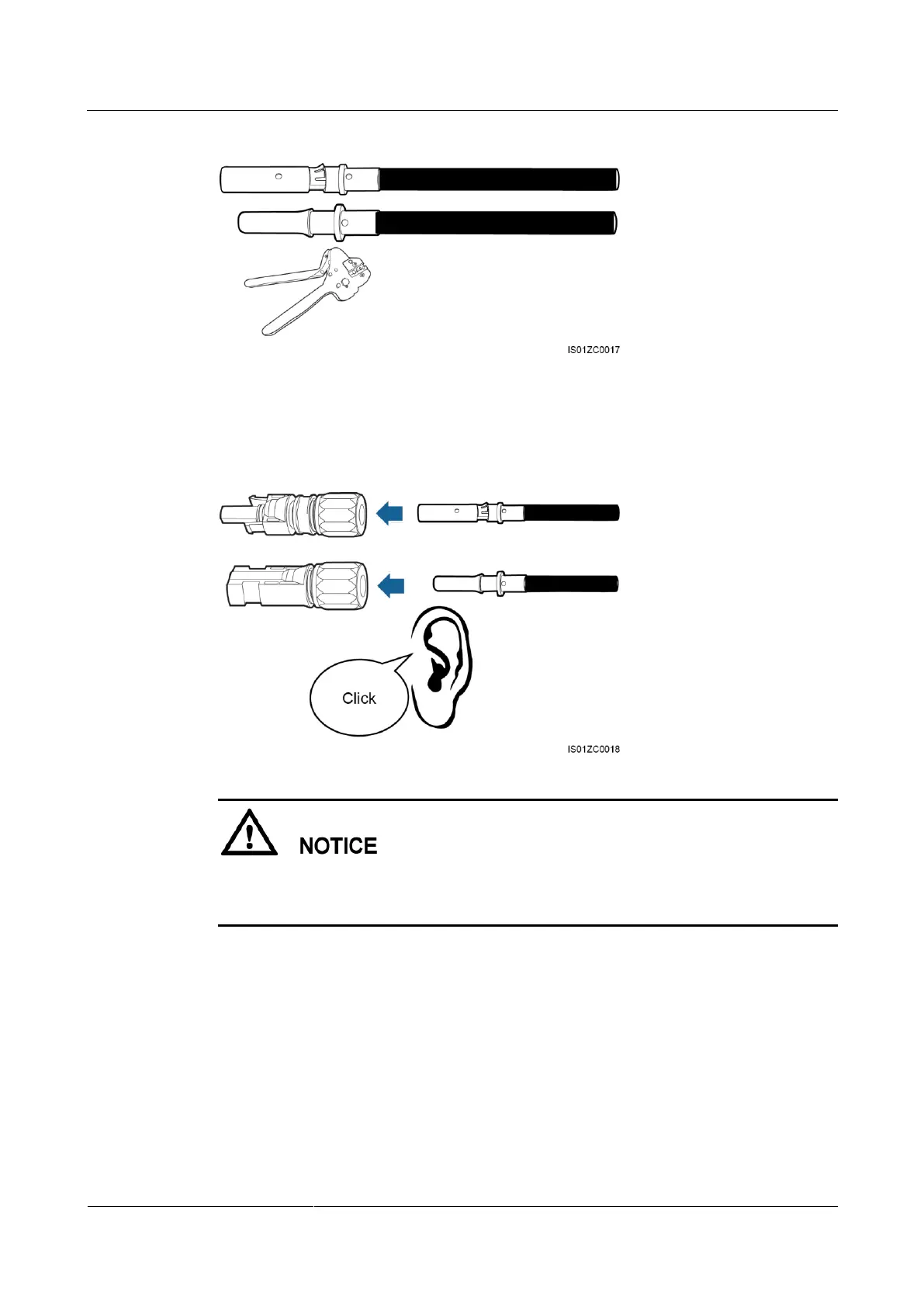

Figure 5-20 Crimping a metal terminal
Step 4 Insert the crimped positive and negative power cables into the corresponding insulation
housings until they snap into place, as shown in Figure 5-21.
Figure 5-21 Engaging metal terminals
After inserting the crimped areas of the positive and negative power cables into the
corresponding insulation housings, ensure that the cables are in position by checking for
resistance when a slight pull is applied.
Step 5 Reinstall cable glands on positive and negative connectors and rotate them against the
insulation covers.
It is recommended that you secure the nut by using removal wrenches, as shown in Figure
5-22.

Table of Contents

Other manuals for Huawei SUN2000-8KTL

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Huawei SUN2000-8KTL and is the answer not in the manual?

Huawei SUN2000-8KTL Specifications

General IconGeneral
Max. efficiency98.6%
European efficiency98.3%
Max. DC voltage1100 V
Nominal AC output power8000 W
Weight25 kg
Operating temperature range-25°C to +60°C
Protection ratingIP65
Max. apparent AC power8800 VA
AC grid frequency50 Hz / 60 Hz
Starting voltage200 V
Number of MPPTs2
CoolingNatural convection
Maximum DC Input Power12000 W
Output Frequency50 Hz / 60 Hz
Nominal AC voltage230 V
Operating voltage range200 V - 1000 V
Rated Output Voltage230 V
MPPT Voltage Range260 V - 850 V
