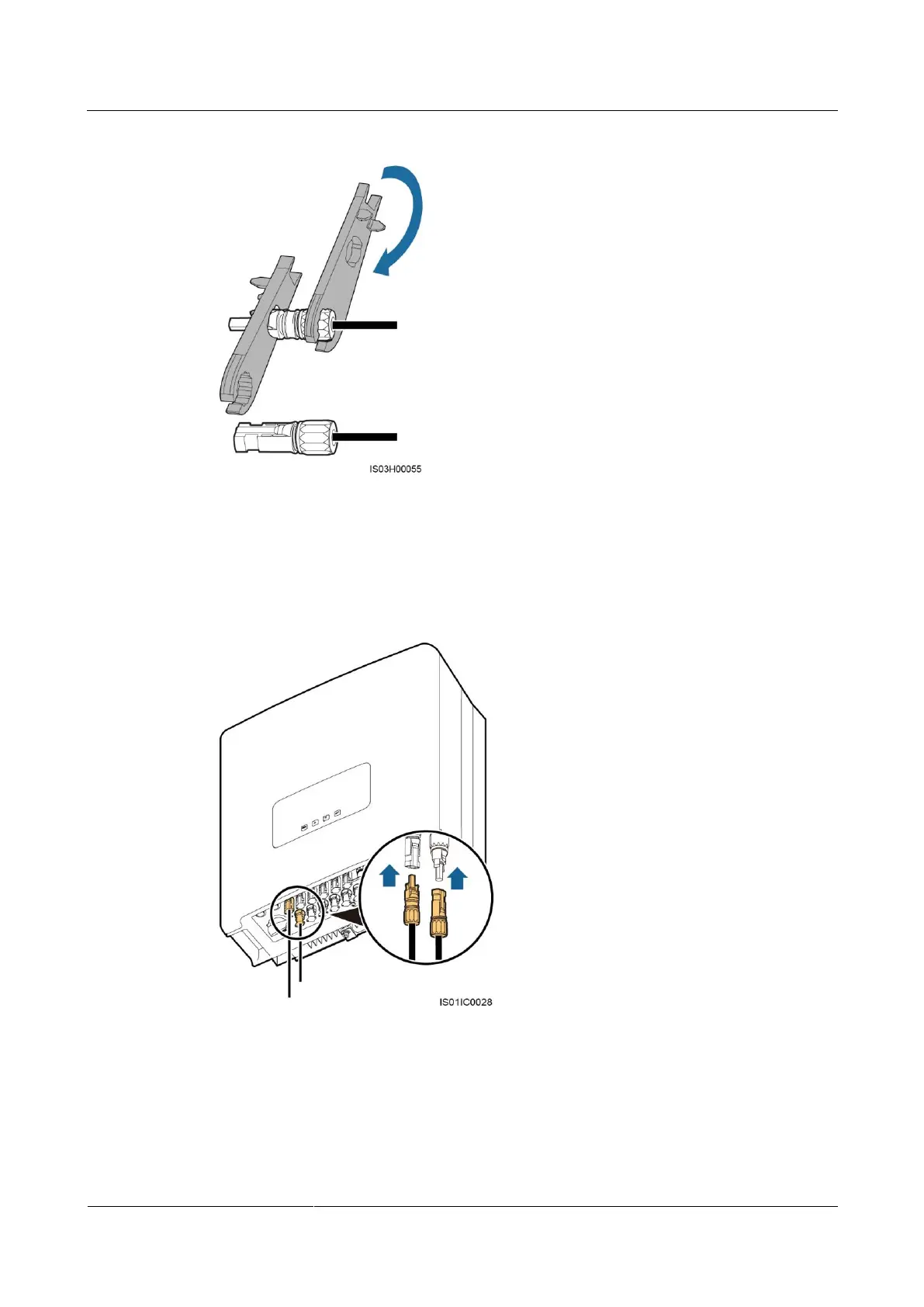

Figure 5-22 Locking a nut
Step 6 Take off the blue dustproof plugs from the bottom of the DC input connectors.
Step 7 Insert the positive and negative connectors into the corresponding DC input terminals of the
SUN2000 until a "click" sound is heard, as shown in Figure 5-23.
Figure 5-23 Positive and negative connectors
