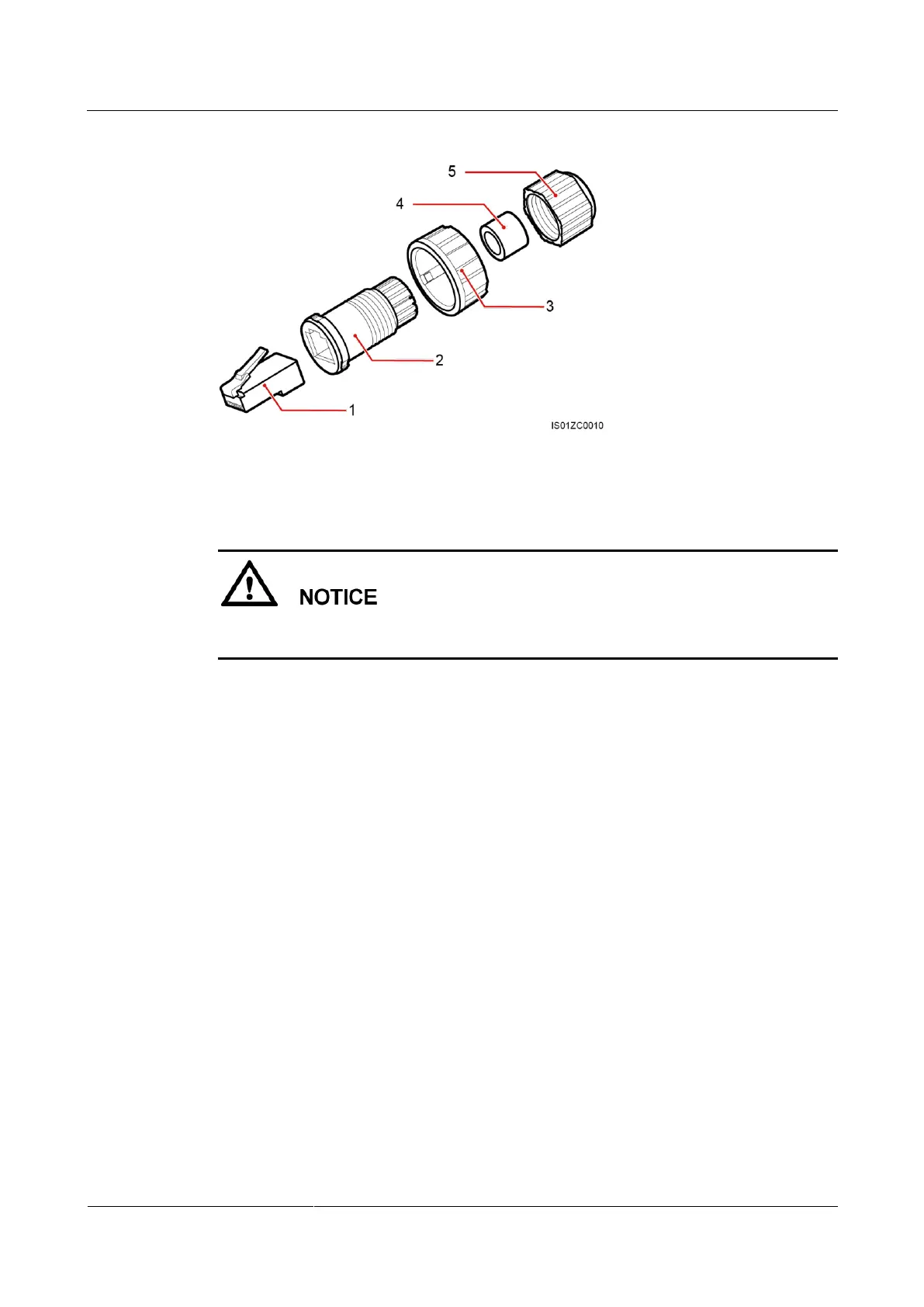

Figure 5-27 Waterproof RJ45 connector composition
(1) Shielded plug
(2) Plastic housing
(3) Coupling nut
(4) Seal ring
(5) Sealing nut
When routing communications cables, ensure that they are separated from power cables and
away from interference sources to prevent communication interruptions.
Procedure
Step 1 Remove an appropriate length of the insulation layer from the shielded network cable using a
wire stripper.
Step 2 Insert the shielded network cable through the sealing nut, seal ring, coupling nut, and plastic
housing.
Step 3 Line up the exposed wires of the network cable in sequence and connect them to the
corresponding pins on the plug, as shown in Figure 5-29.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
