Huawei SUN2000-8KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
62

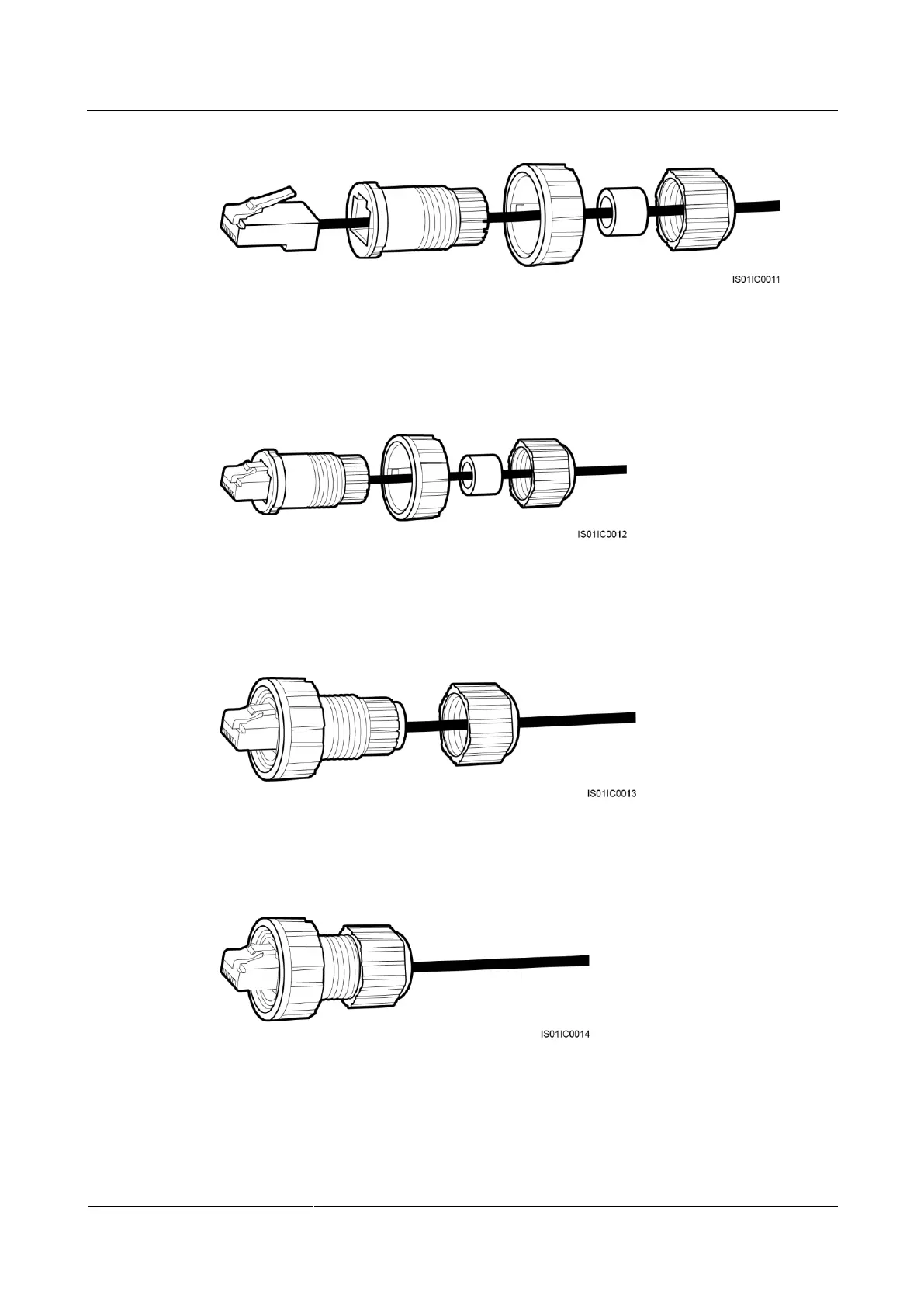

Figure 5-29 Connecting the plug
Step 4 Crimp the plug using a crimping tool.
Step 5 Secure the plastic housing to the plug, as shown in Figure 5-30.
Figure 5-30 Connecting the plastic housing
Step 6 Insert the seal ring into the plastic housing and secure the coupling nut to the plastic housing,
as shown in Figure 5-31.
Figure 5-31 Connecting the seal ring and coupling nut
Step 7 Secure the sealing nut to the plastic housing, as shown in Figure 5-32.
Figure 5-32 Connecting the sealing nut
Step 8 Insert the plug into the RS485 port on the SUN2000, and tighten the coupling nut.
----End

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
