Huawei SUN2000-8KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
61

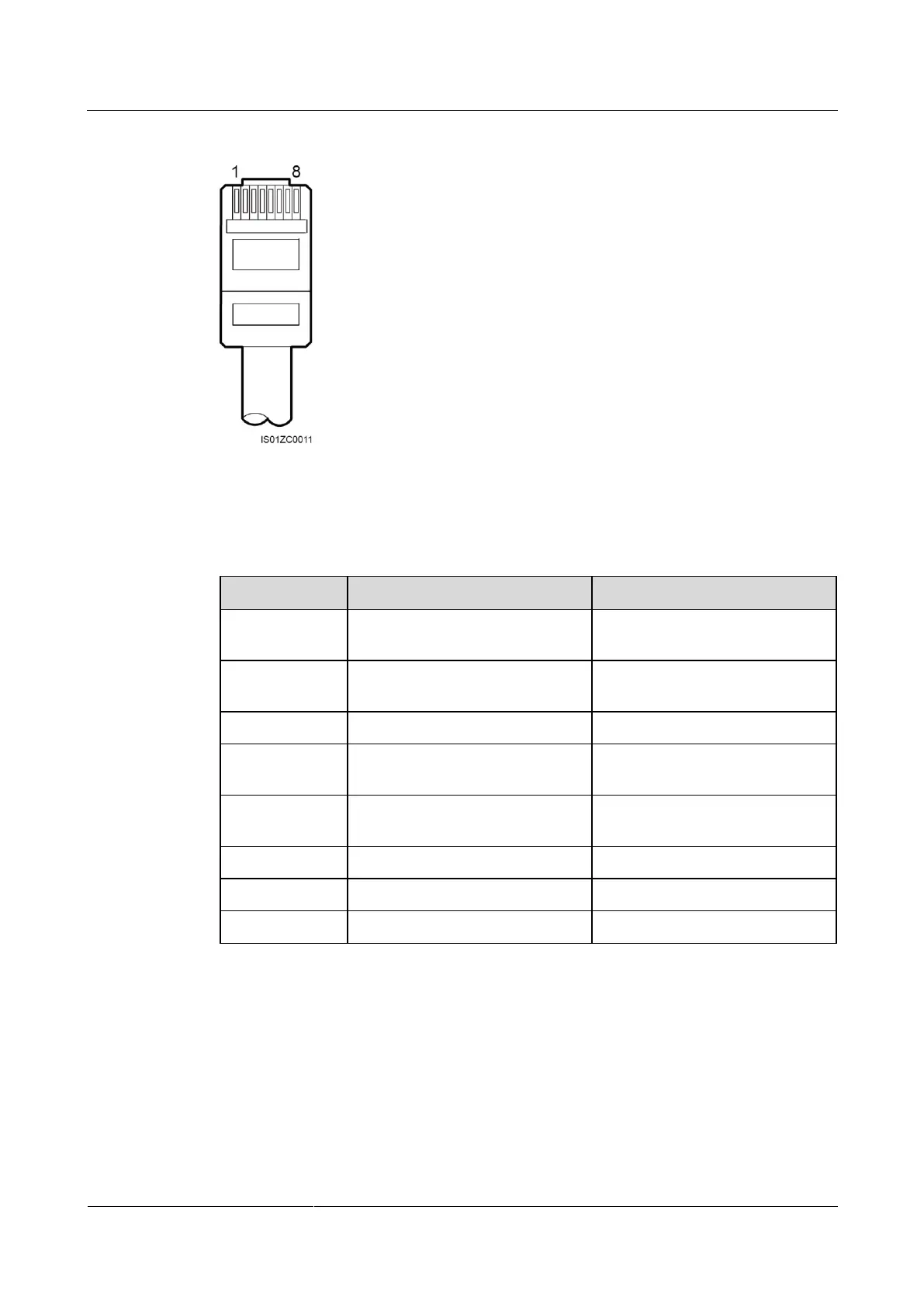

Figure 5-28 Connection sequence
Figure 5-28 shows the connector side that does not have a clip. Table 5-3 lists the mapping
between the pins and wires.
Table 5-3 Mapping between pins and wires
Pin No.
Color
Function
1
White-orange
RS485A, RS485 differential
signal +
2
Orange
RS485B, RS485 differential signal
-
3
White-green
PGND
4
Blue
RS485A, RS485 differential
signal +
5
White-blue
RS485B, RS485 differential signal
-
6
Green
PGND
7
White-brown
PGND
8
Brown
PGND

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
