Huawei SUN2000 User Manual

SUN2000-(3.8KTL-11.4KTL)-USL0
User Manual
7 Operations on the Local FusionHome App
Issue 01 (2018-05-21)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
114
7.4.6 Communication Configuration
To access the Comm config screen, choose Comm config from the Operation console
screen.

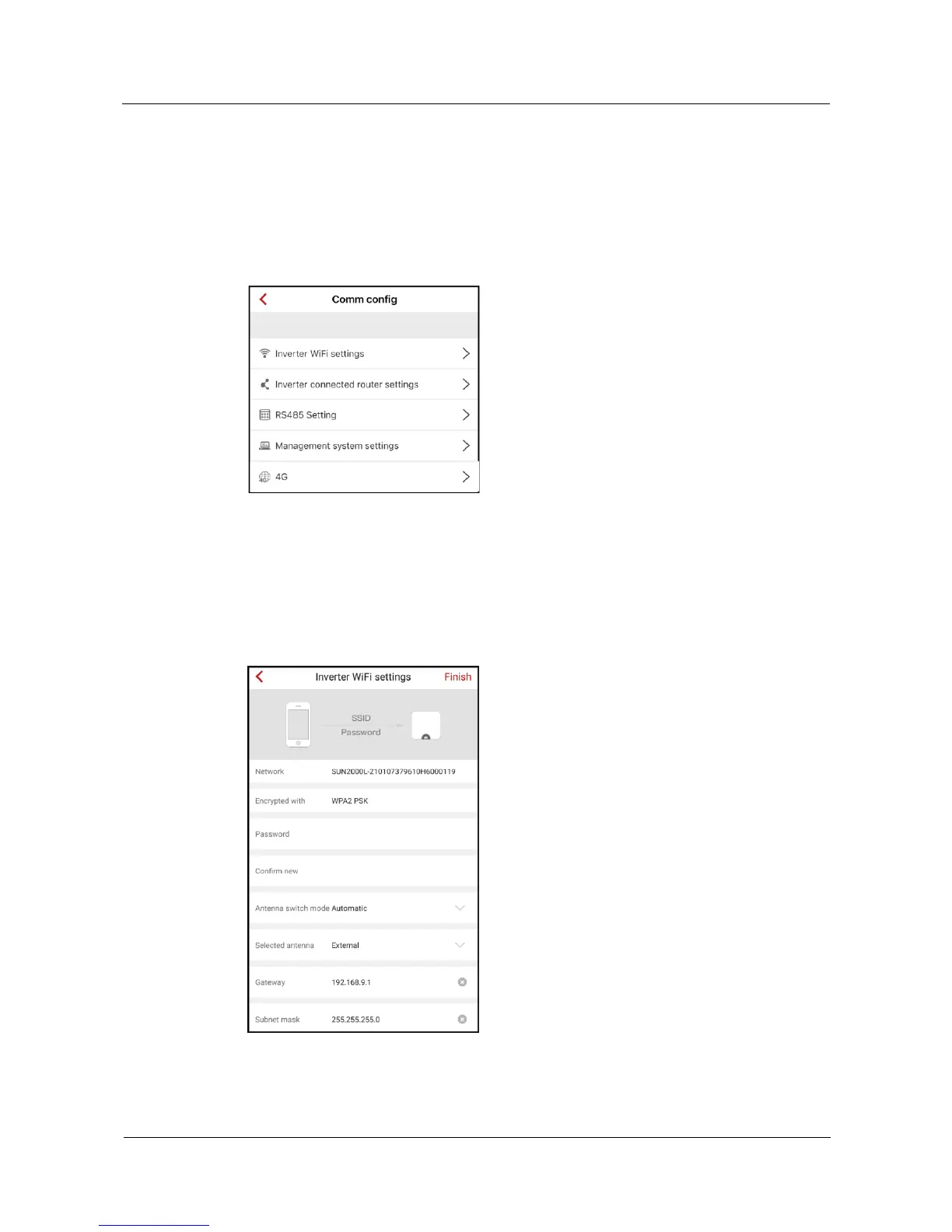

Figure 7-46 Comm config
Setting Inverter WiFi Parameters
To set the inverter WiFi parameters, choose Comm config > Inverter WiFi settings from the
Operation console screen, and then select the appropriate SUN2000.
Figure 7-47 Inverter WiFi settings

Huawei SUN2000 Specifications

General

Model	SUN2000
Efficiency	Up to 98.6%
MPPT	Yes
Max Input Voltage	1100V
Number of MPPTs	2
Operating Temperature	-25°C to +60°C
Protection Level	IP65
Communication	RS485
Nominal Output Voltage	230V/400V
