2.3 Label Description
Enclosure Labels
Table 2-3 describes the labels on the SUN2000 enclosure and their meanings.

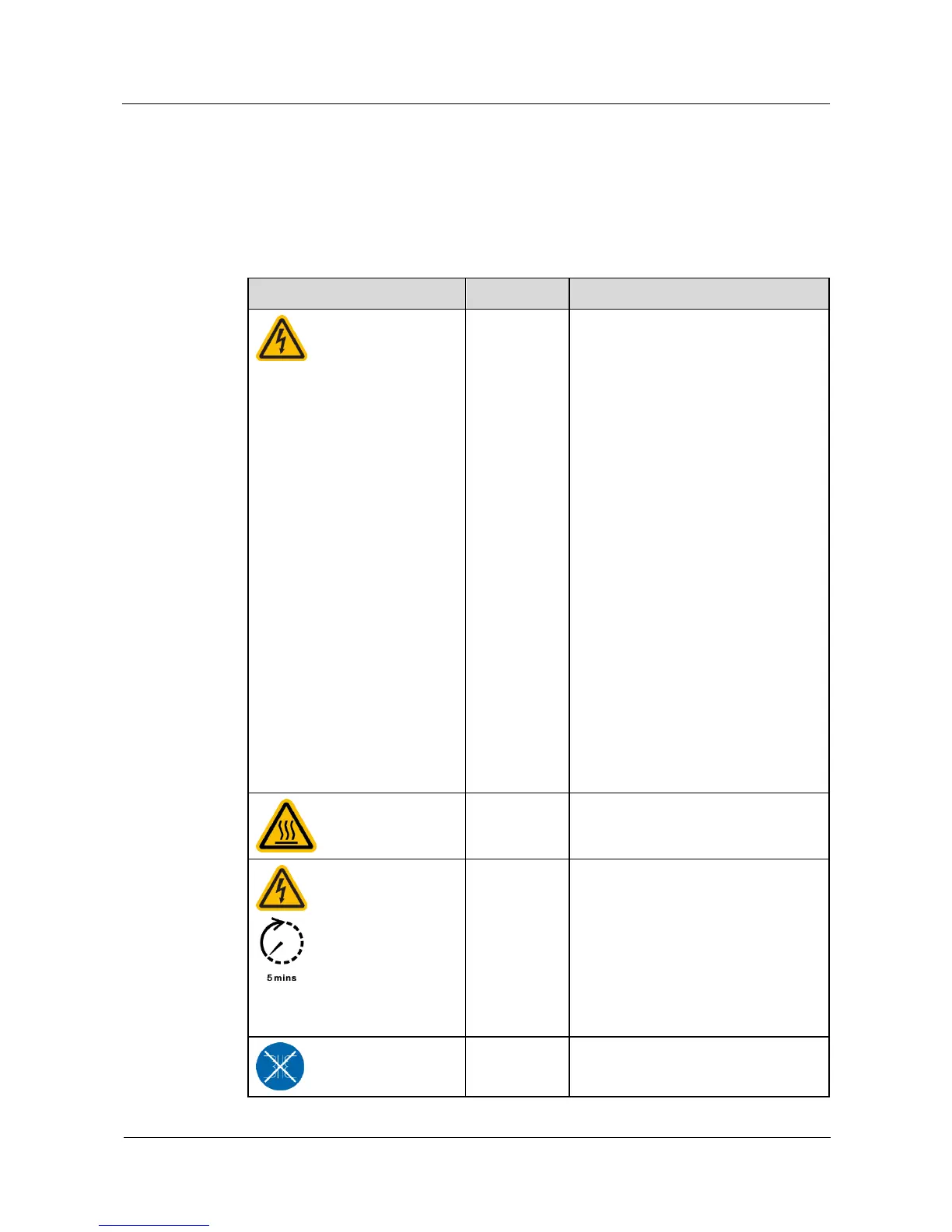

Table 2-3 Label description
Label
Name
Meaning
Electric shock
warning

The SUN2000 has a voltage of 500
V. Electric shock could be fatal.
Keep a safe distance.

All components inside the
SUN2000 can be maintained only
by trained service personnel.

The DC input terminals and AC
output terminals have high
voltages. Disconnect the DC input
and AC output from the SUN2000
before maintenance.

When a PV module is exposed to
sunlight, it supplies DC power to
the SUN2000.

The DC conductors of the PV
system are not grounded and may
be energized.

The DC conductors of the PV
system are not grounded under
normal conditions. However, the
DC conductors may be
intermittently grounded
unexpectedly when the SUN2000 is
measuring the insulation resistance
at the PV side.
Burn warning
Do not touch a running SUN2000
because the shell is hot when the
SUN2000 is running.
Delayed
discharge

High voltage exists after the
SUN2000 is powered on. Only
qualified and trained electrical
technicians are allowed to perform
operations on the SUN2000.

Residual voltage exists after the
SUN2000 is powered off. It takes 5
minutes for the SUN2000 to
discharge to a safe voltage.
Transformerle
ss inverter
The SUN2000 output does not pass
through an isolation transformer.

Huawei SUN2000 Specifications

General

Model	SUN2000
Efficiency	Up to 98.6%
MPPT	Yes
Max Input Voltage	1100V
Number of MPPTs	2
Operating Temperature	-25°C to +60°C
Protection Level	IP65
Communication	RS485
Nominal Output Voltage	230V/400V
