2 Product Overview
Issue 01 (2018-05-21)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
Enclosure Dimensions

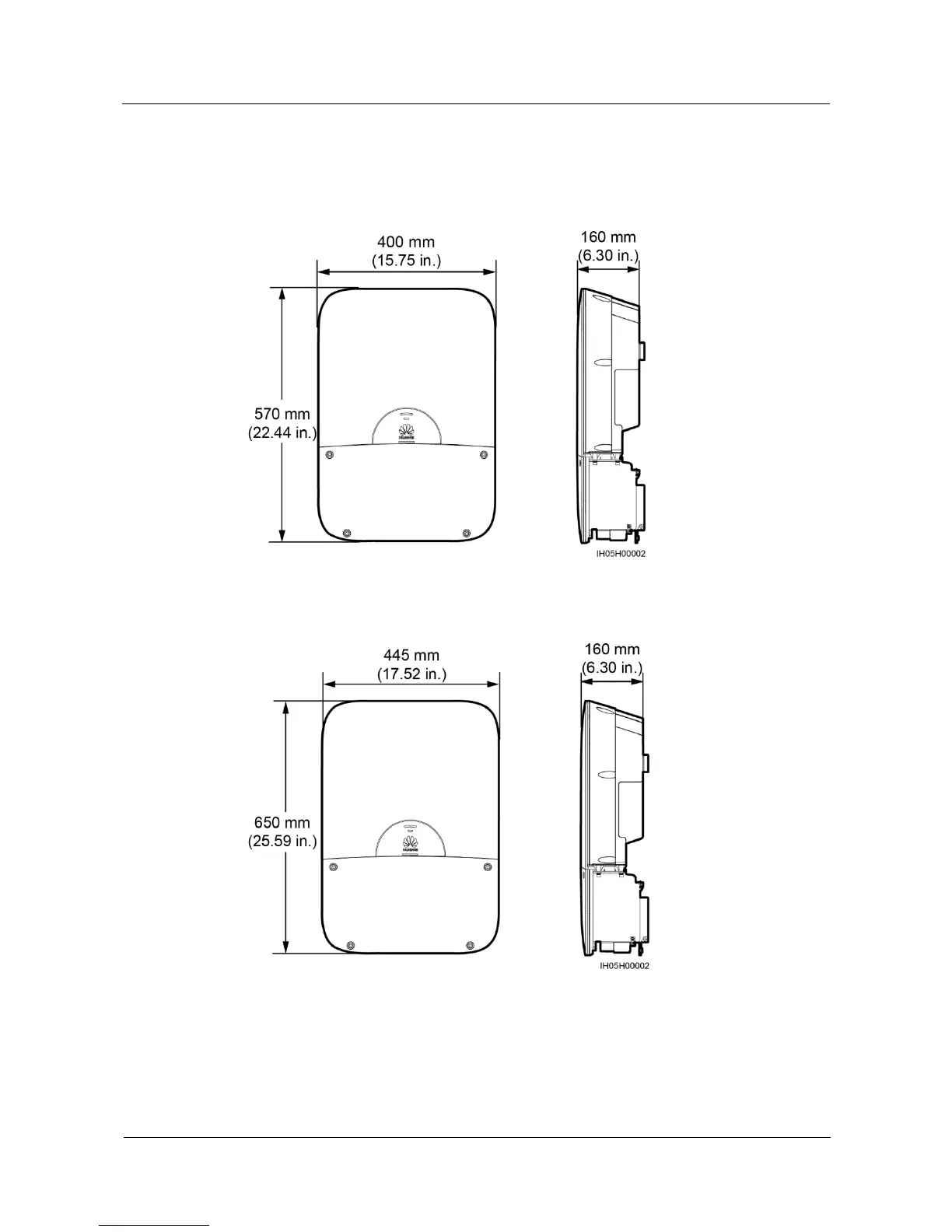

Figure 2-7 shows the SUN2000 enclosure dimensions.
Figure 2-7 Enclosure dimensions (SUN2000-3.8KTL/5KTL/7.6KTL-USL0)
Figure 2-8 Enclosure dimensions (SUN2000-9KTL/10KTL/11.4KTL-USL0)
