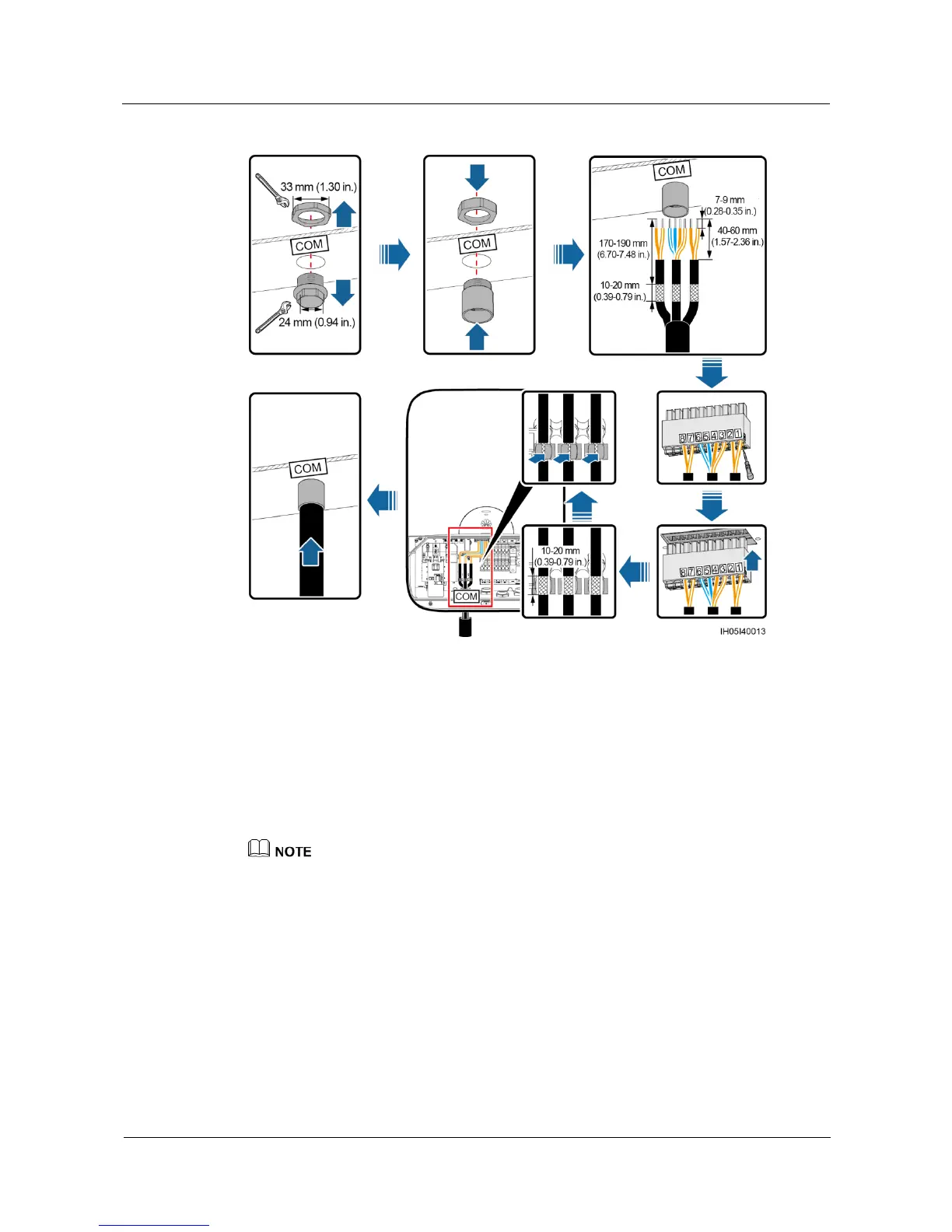

Figure 5-19 Connecting the signal cables (SUN2000-9KTL/10KTL/11.4KTL-USL0)
----End
5.3.5 (Optional) Installing an Antenna
Prerequisites
An antenna is configured.

4G and WLAN antennas can be installed in the same way. The following describes the installation of
a 4G antenna.

Ensure that the pad for the antenna is installed correctly.
Procedure
Step 1 Remove the watertight cap from the ANT port.
Step 2 Install the pad.
Step 3 Install the antenna.

Huawei SUN2000 Specifications

General

Model	SUN2000
Efficiency	Up to 98.6%
MPPT	Yes
Max Input Voltage	1100V
Number of MPPTs	2
Operating Temperature	-25°C to +60°C
Protection Level	IP65
Communication	RS485
Nominal Output Voltage	230V/400V
