Huawei SUN2000 - Appearance and Labels

SUN2000-(3.8KTL-11.4KTL)-USL0
User Manual
2 Product Overview
Issue 01 (2018-05-21)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8

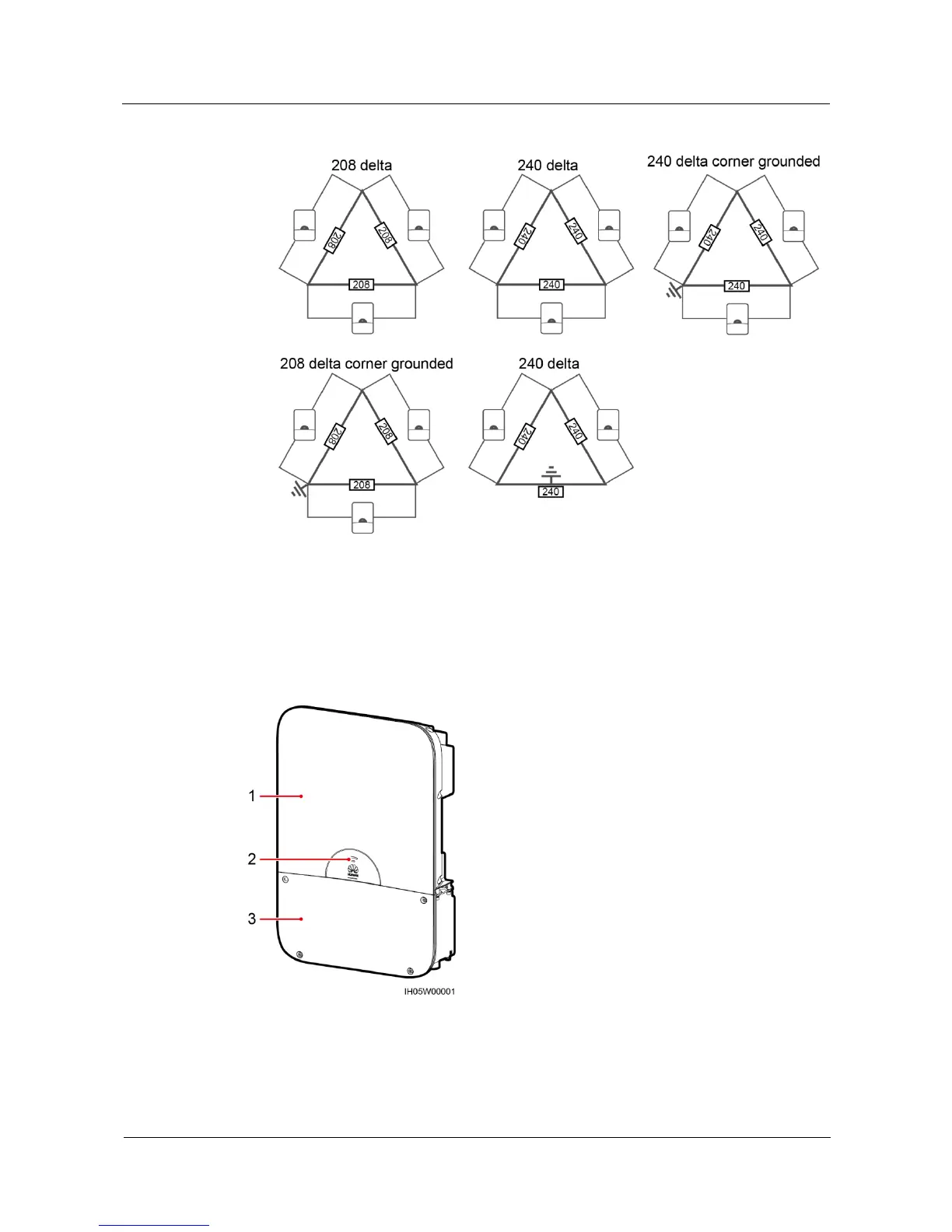

Figure 2-4 Power grid types (L1/L2)
2.2 Appearance
Enclosure Appearance
Figure 2-5 Front view
(1) Host panel
(2) LEDs
(3) Maintenance
compartment door
Table 2-2 describes the LED indicators.
