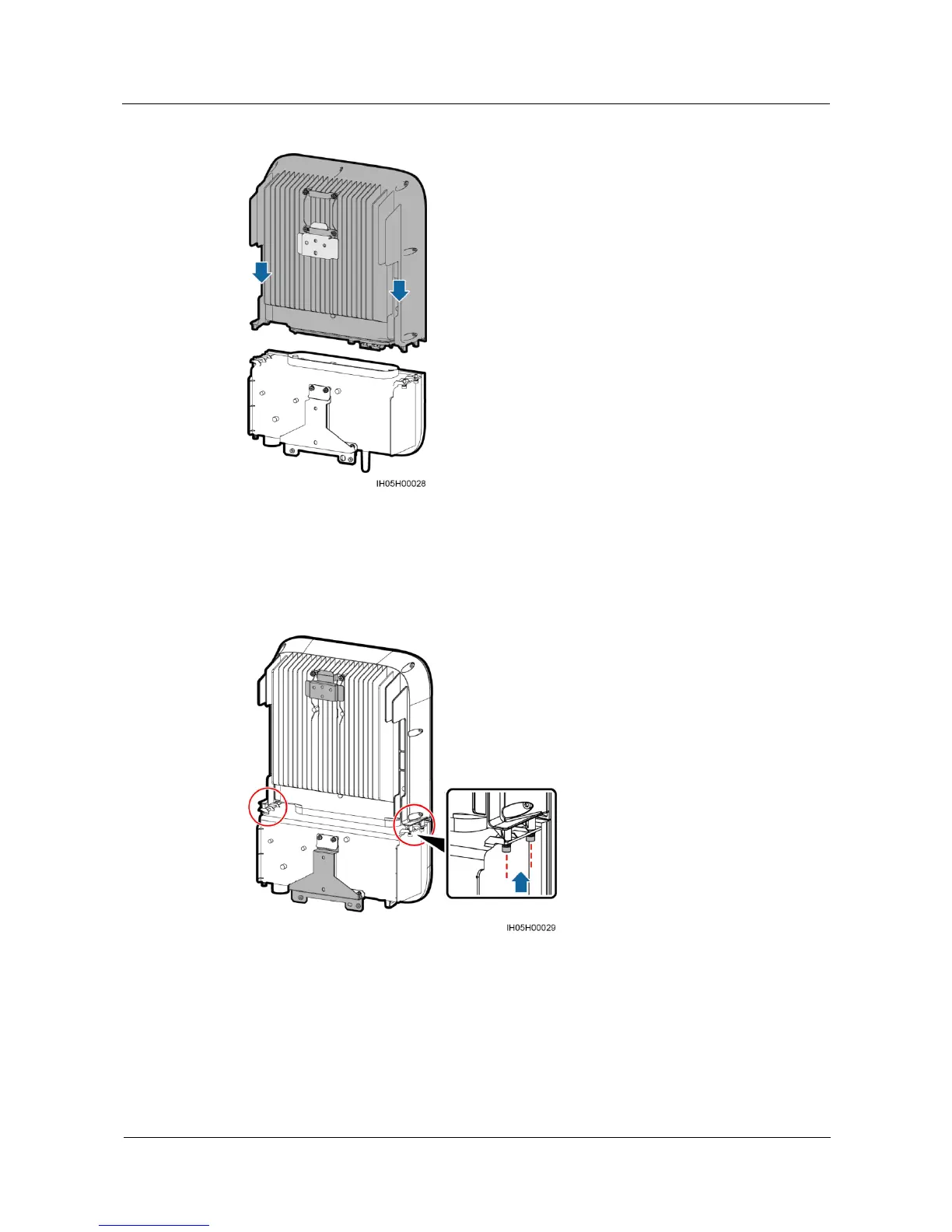

Figure 8-11 Placing the new power compartment

Step 10 After cables are routed, install the upper mounting kit of the new power compartment onto the

mounting bracket. Reinstall the four M6 screws to secure the power and maintenance

compartments.

Figure 8-12 Securing the power and maintenance compartments

Step 11 Reinstall the ground, fuse, AC and DC cables in sequence.

Step 12 Reinstall the USB cable (optional, only for the 4G model), or reinstall the WLAN cable

(optional, only for the WLAN model).

Step 13 Reinstall the 10-pin signal terminal and 2-pin enable terminal.

Step 14 Reinstall the maintenance compartment cover.
