SUN2000-(3.8KTL-11.4KTL)-USL0

User Manual

4 System Installation

Issue 01 (2018-05-21)

Huawei Proprietary and Confidential

Procedure

Step 1 Determine the positions for drilling holes using the marking-off template. Level the positions

of mounting holes using a level, and mark the positions with a marker.

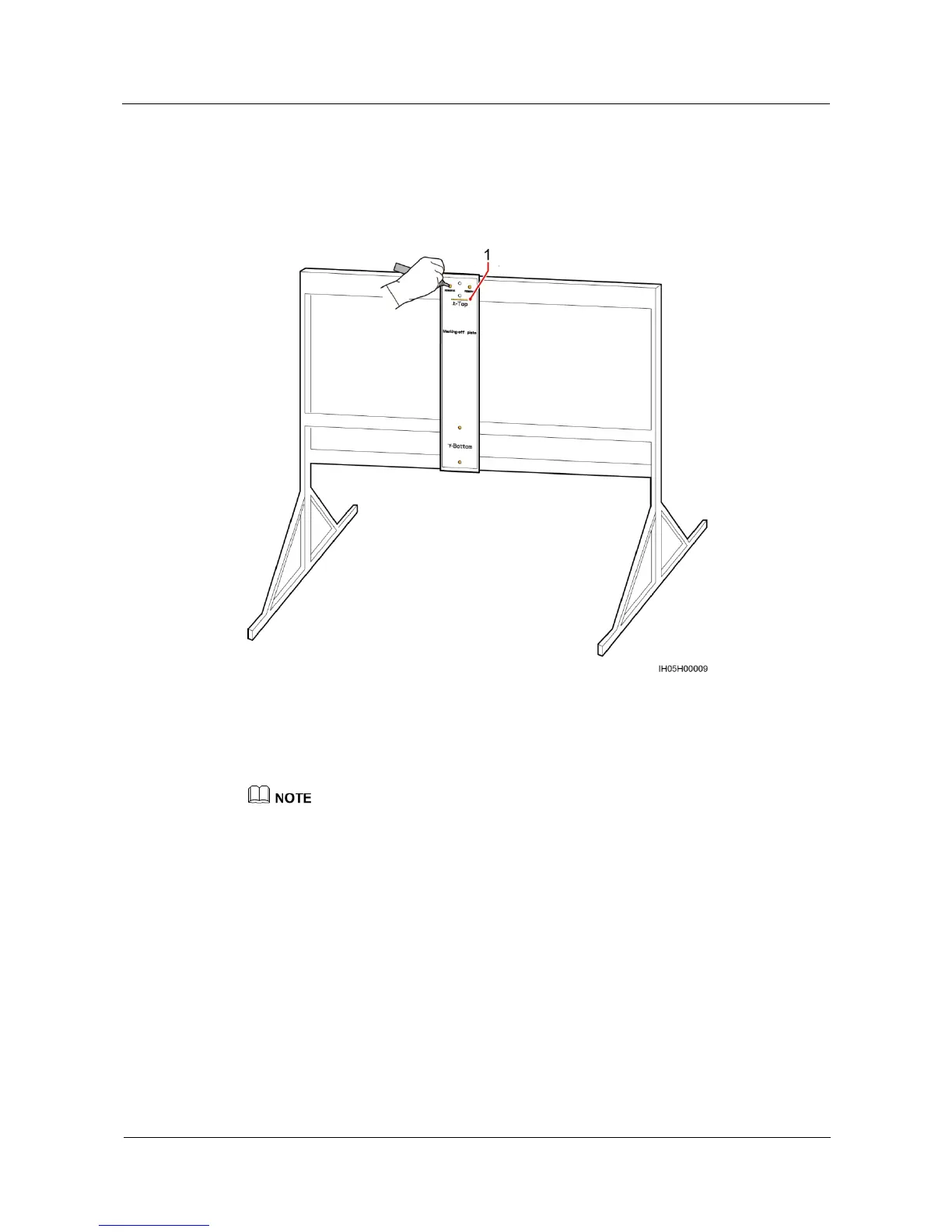

Figure 4-9 Determining hole positions

(1) Bottom alignment line for the mounting bracket (top)

Step 2 Drill holes using a hammer drill.

Yo u are advised to apply anti-rust paint on to the hole positions for protection.
