Huawei SUN2000 User Manual

SUN2000-(3.8KTL-11.4KTL)-USL0
User Manual
5 Electrical Connections
Issue 01 (2018-05-21)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
44

Ensure that AC terminations are secured. Failure to do so may cause the SUN2000 to
malfunction or cause damage to its terminal block due to issues such as overheating. Any
such damage is not covered by the warranty.

The cable colors shown in following figures are for reference only. Select an appropriate
cable according to local standards.

In the following figure, 1.0 mm x 5.5 mm (0.04 in. x 0.22 in.) is the thickness and width of
the screwdriver blade.

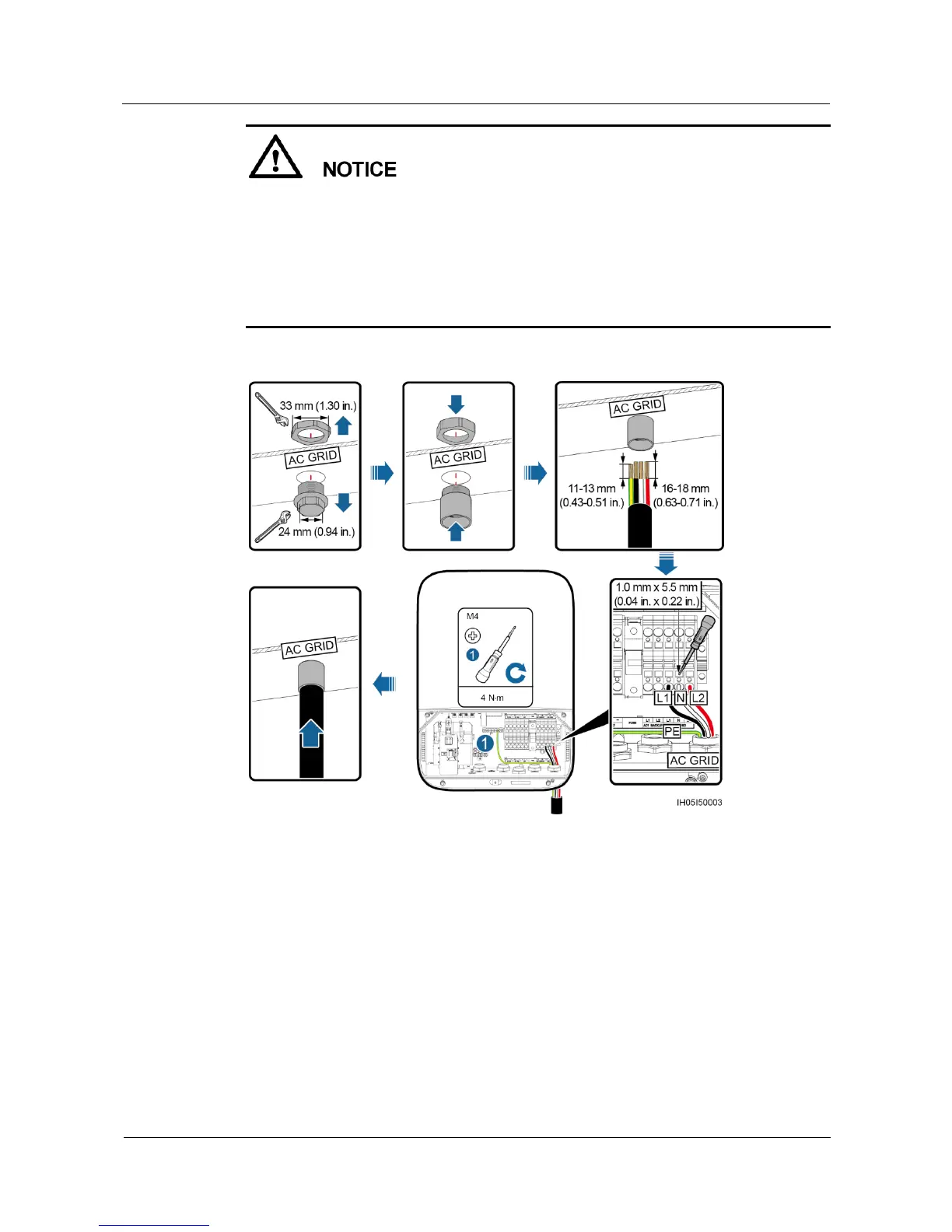

Figure 5-7 SUN2000-3.8KTL/5KTL/7.6KTL-USL0 (L1/L2/N)

Huawei SUN2000 Specifications

General

Model	SUN2000
Efficiency	Up to 98.6%
MPPT	Yes
Max Input Voltage	1100V
Number of MPPTs	2
Operating Temperature	-25°C to +60°C
Protection Level	IP65
Communication	RS485
Nominal Output Voltage	230V/400V
