Step 3 Connect the battery cable to the terminal block.
Step 4 Secure the fitting to the conduit.
Step 5 Check that the cables are connected correctly and securely. Then take appropriate measures to
ensure that the pipe conduit and fittings are secured reliably, and seal the cable holes.
Step 6 Keep the maintenance compartment clean.
Exposure to battery voltage can result in serious injury. Use dedicated insulation tools to
connect cables.
Ensure that cables are correctly connected between the terminals on the battery and the
battery switch, and between the battery switch and the battery terminal on the SUN2000.
Cables with high rigidity, such as armored cables, are not recommended, because poor contact
may be caused by the bending of the cables.

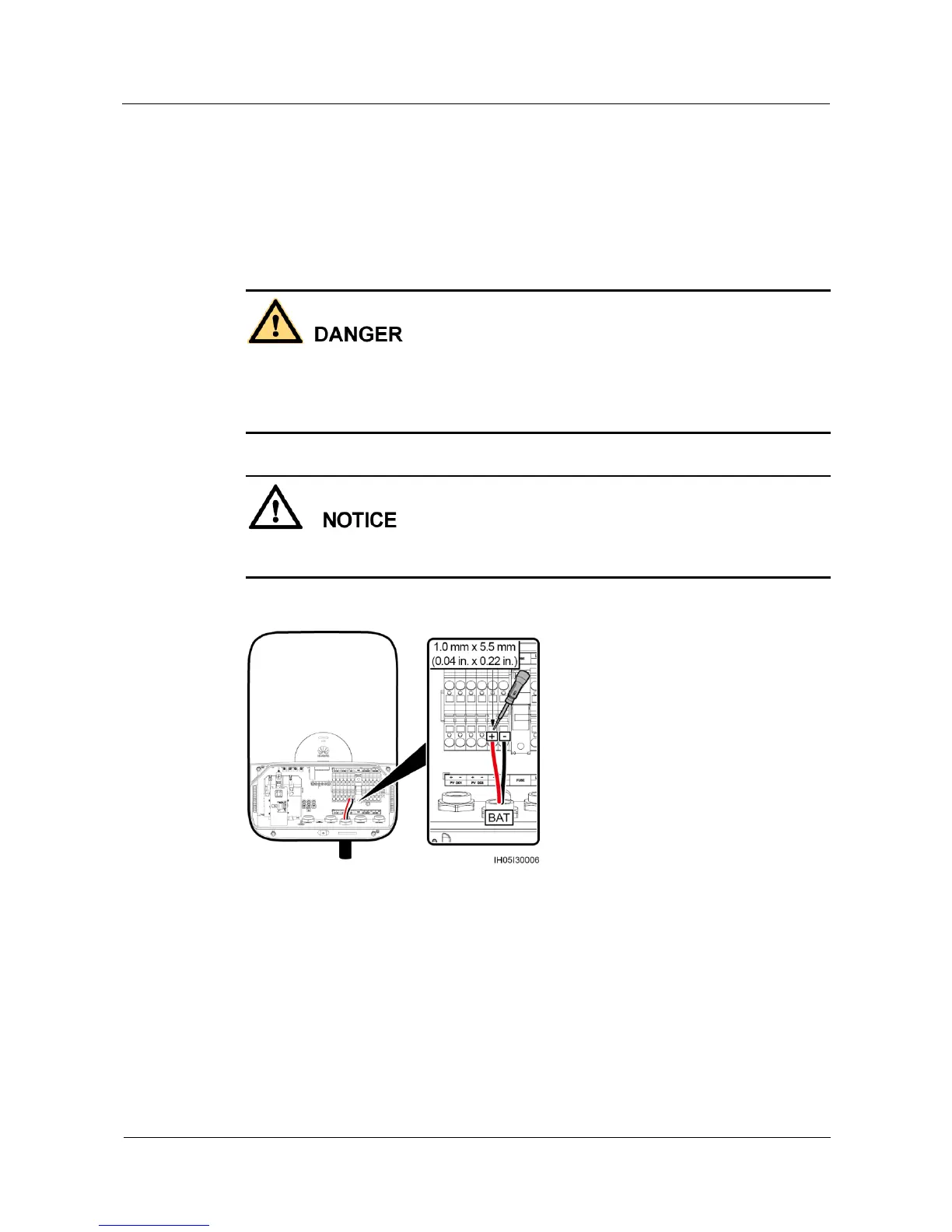

Figure 5-15 Connecting the battery cable (SUN2000-3.8KTL/5KTL/7.6KTL-USL0)
