2.3 Product Structure

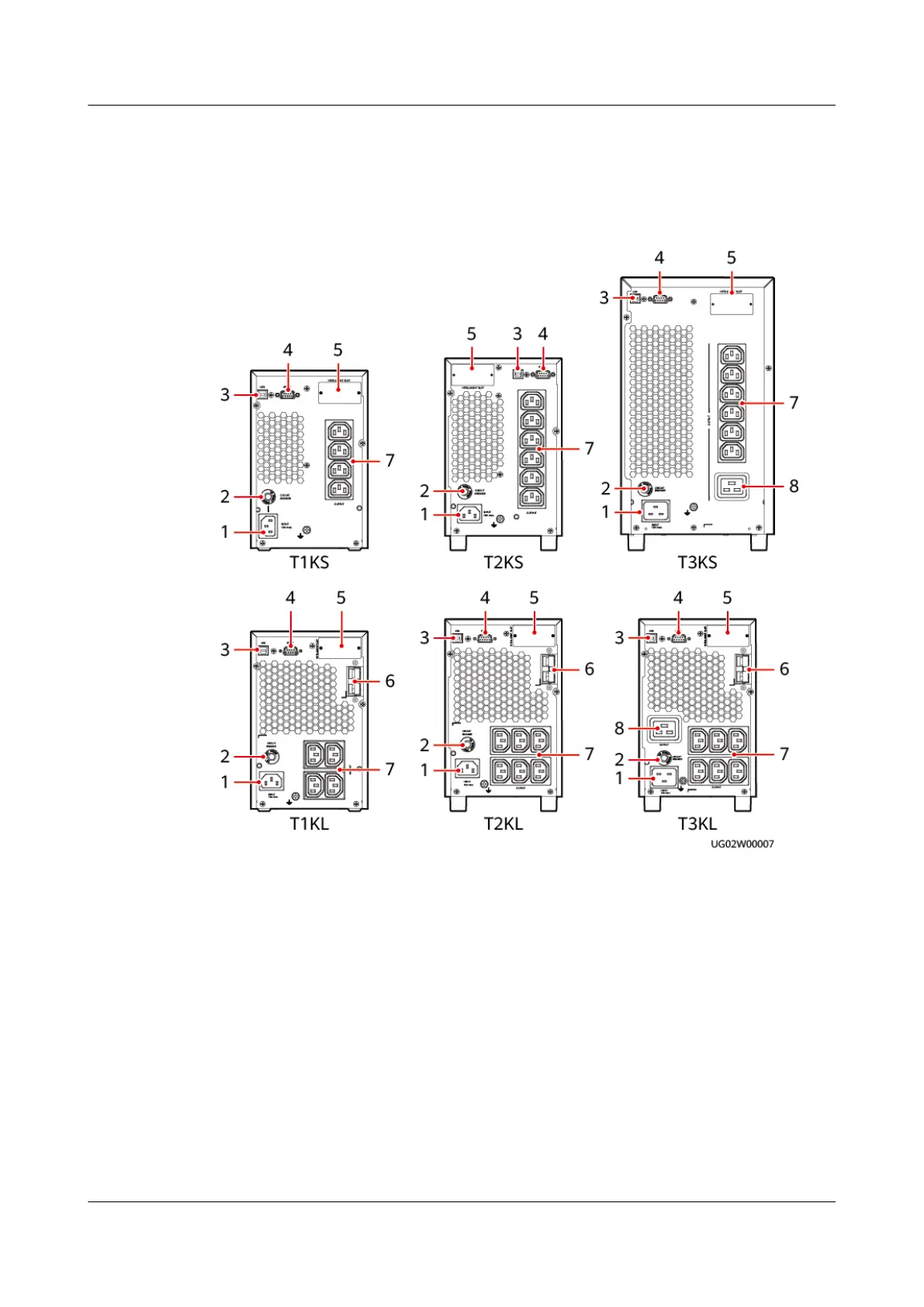

Figure 2-3 Rear views of UPSs with standard and long backup time
(1) Mains input socket (1 kVA/2 kVA: C14; 3
kVA: C20)
(2) Input circuit breaker
(3) USB port
a
(4) RS232 port
(5) Optional card slot (6) External battery connector
(only for long backup time
models)
(7) Output sockets (C13) (8) Output socket (C19)
UPSJZ-T-(1 kVA–3 kVA)
