11 Trolling Motor Mount
Hinge on Left (Back)
Hinge on Right (Front)

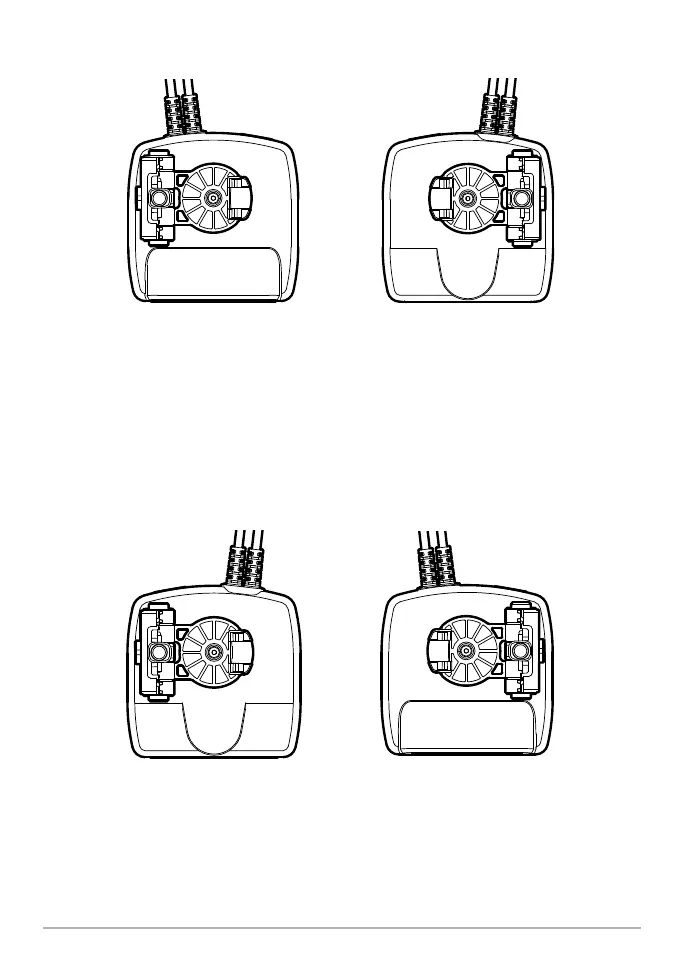

Positioning the Landscape Mode Mount: Recommended Confi guration
MEGA 360 users should install MEGA Live 2 using the Optional Confi guration.
Optional Confi guration: Mount the transducer with the cables farthest from
the trolling motor shaft (see the illustration Positioning the Landscape Mode
Mount: Optional Confi guration).
Hinge on Right (Back)
Hinge on Left (Front)
Positioning the Landscape Mode Mount: Optional Confi guration
4. Connect the Landscape Mode mount to the transducer according to your
Recommended or Optional configuration.
The ratchets are keyed to allow for Port or Starboard installation. The ribs on the
Landscape Mode mount ratchet should align with the marks on your transducer.
