20Choke Cable Installation
Install the Choke Cable
Reduce noise interference (if needed) using the included choke cable.
1. Determine Whether to Install the Choke Cable
If an on-board charger is present and attached to the cranking battery, install the
choke cable (included) to reduce noise interference in the transducer.
If there is not an on-board charger connected to the cranking battery, the choke
cable is not required.
2. Install the Choke Cable
Use the following instructions to install the choke cable.
Supplies: Wire cutter, wire stripper, wire crimper, safety glasses, protective gloves,
and a heating agent.
WARNING
Disconnect the power source for all related equipment before you start installation.
1. Disconnect the on-board charger from the main power source.
2. Disconnect the charger cable from the cranking battery.
3. Use a wire cutter to cut the charger cable between the fork in the output cable
and the fuse holder. The fuse holder should always remain within 7" of the
battery terminals.

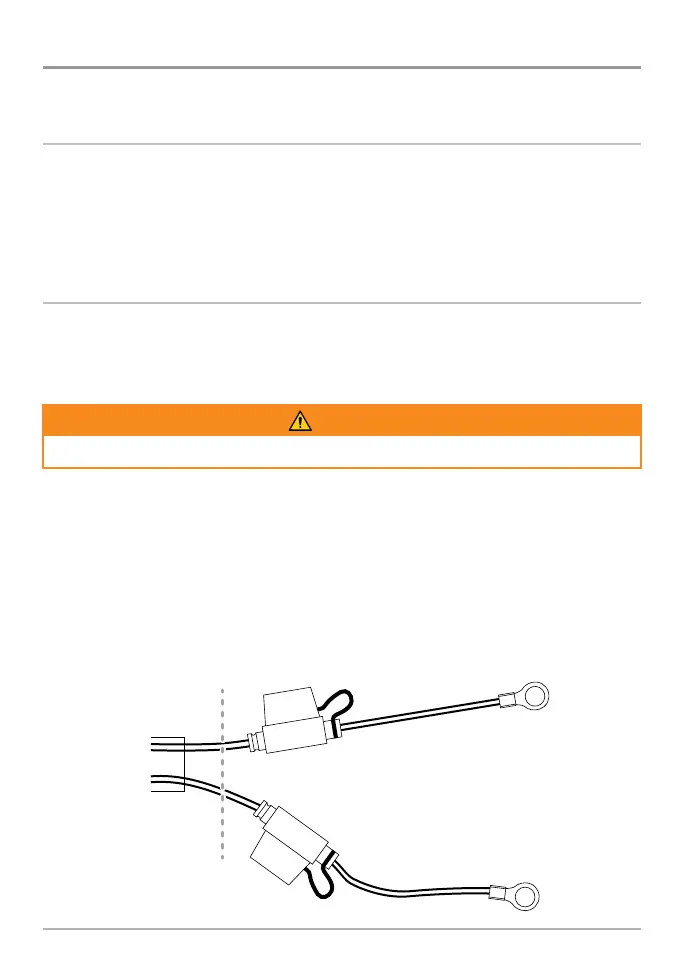

Cutting the Charger Cable
cut here
To Next Page
