Set Up the Fish Finder
Use the following instructions to power on the fish finder and confirm the MEGA Live
2 transducer and the GPS Heading Sensor are detected by the unit.
CAUTION
It is important to fi nish all installation connections before powering on the fi sh fi nder. It
may take up to a minute for the MEGA Live 2 transducer and other attached equipment
to be detected by the fi sh fi nder.
1. Confi rm Connections
1. Turn on the power source from the main switch.
2. On the fish finder, press the POWER key. If you are powering on a fi sh fi nder
in a multiple-fi sh fi nder Ethernet network, power on the fish finder that is
connected to the MEGA Live 2 transducer first.
3. Select Normal mode.
4. From the home screen, review the status bar in the top right corner of the
screen to confirm the sensor status for the MEGA Live 2 transducer and that the
GPS Receiver/Heading Sensor is connected.

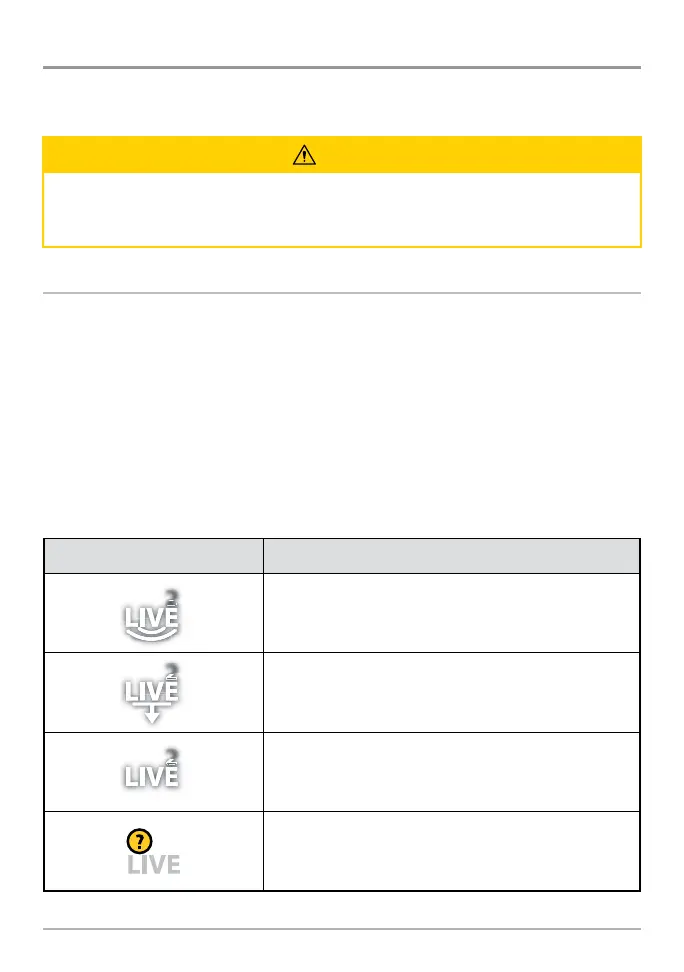

MEGA Live 2 Status Icon Icon Description
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Connected/In Water/Pinging: The MEGA Live 2 is
connected, in the water, and pinging.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Connected/In Water/Not Pinging: The MEGA
Live 2 is connected and in the water, but it is not
pinging.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Connected/Out of Water: The MEGA Live 2 is
connected, but the wet indicator is out of the
water.
2
Connection Lost: The connection to the MEGA
Live 2 was lost.
