10MEGA Live Installation
A. MEGA Live Mounting Plate (for MEGA Live installation only)
The plate can be mounted on the left or right side of the trolling motor. If you have a
motor stabilizer already installed on one side of the motor, install the mounting plate
on the opposite side.
1. Align the plate below the BowGuard. Line up the holes on the plate with the
threaded holes on the BowGuard.
2. Install the four (4) included 5/16-18 x 1" bolts through the plate and into the
BowGuard. Hand-tighten using a 5/16 nut driver until secure (see the illustration
Installing the Mounting Plate). Hand-tighten only!

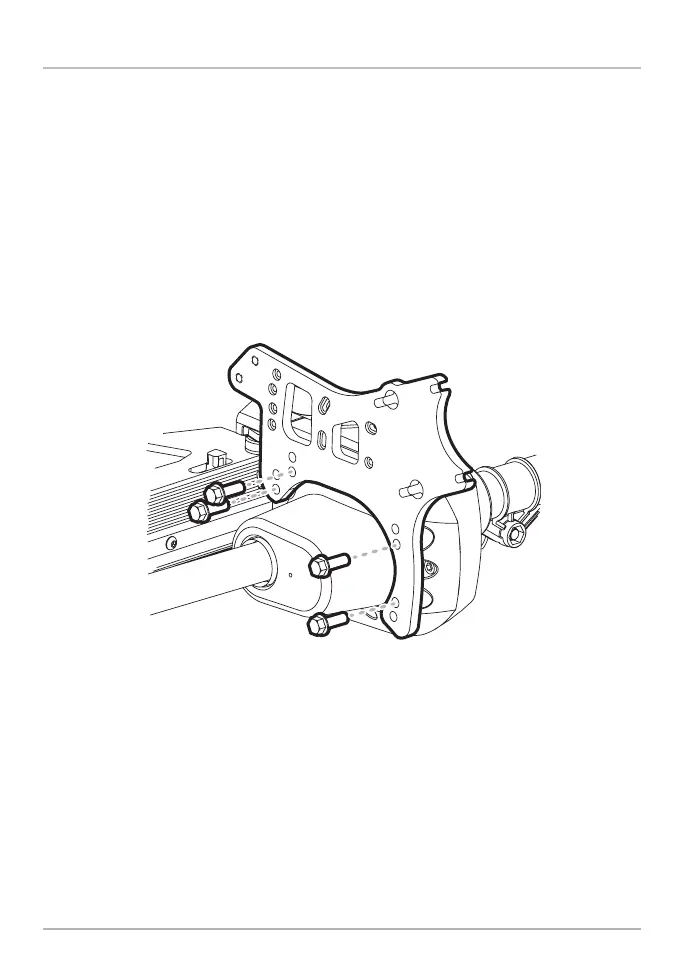

Installing the Mounting Plate
