27 MEGA 360 Installation
• The pod should be submerged 6" (152.4 mm) below the waterline. The height
may be adjusted, however, the pod must be mounted 1" (25.4 mm) off the tip
of the propeller
.
2. Assemble the MEGA 360 Mount
1. If your MEGA 360 will be mounted on the left side of the trolling motor,
position the mount so the straight edge faces to the left as shown in the
illustration.
round edge
on the right
pod route
straight edge
on the left

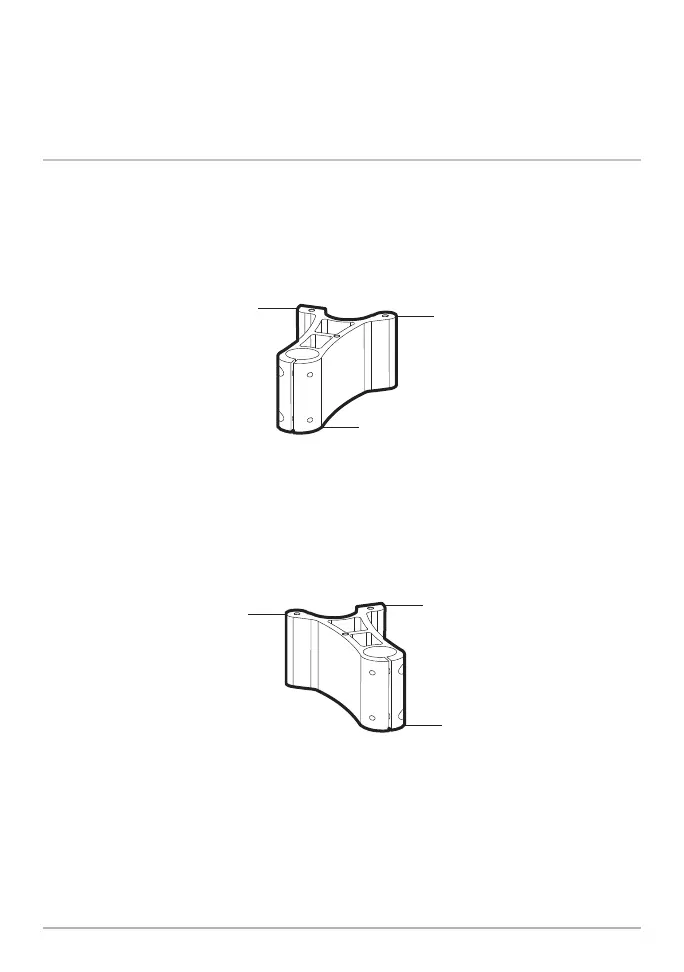

Positioning the Mount for Installation
on the Left Side of Trolling Motor
If your MEGA 360 will be mounted on the right side of the trolling motor,
position the mount so the straight edge faces to the right as shown in the
illustration.
round edge
on the left
pod route
straight edge
on the right
Positioning the Mount for Installation
on the Right Side of Trolling Motor
2. Install the (3) 1/4-20 x 1" screws into the threaded holes on the bracket as
shown in the illustration. Do not fully tighten.
