17 MEGA Live Installation
6. Test the MEGA Live Views
1. Rotate the transducer by hand to test the Down, Forward and Landscape Mode
views as illustrated in MEGA Live Views. Your trolling motor mount includes
guides to help you position the transducer correctly (see the illustration MEGA
Live Mode Guides).
To alternate between Down and Forward views, rotate the transducer on its
mount using both hands.
To change from Down or Forward view to Landscape Mode, press the two
release buttons on the hinge until the mount unlocks. Flip the transducer out
until the hinge locks.
To adjust the Landscape Mode angle, rotate the transducer on its mount
using both hands.

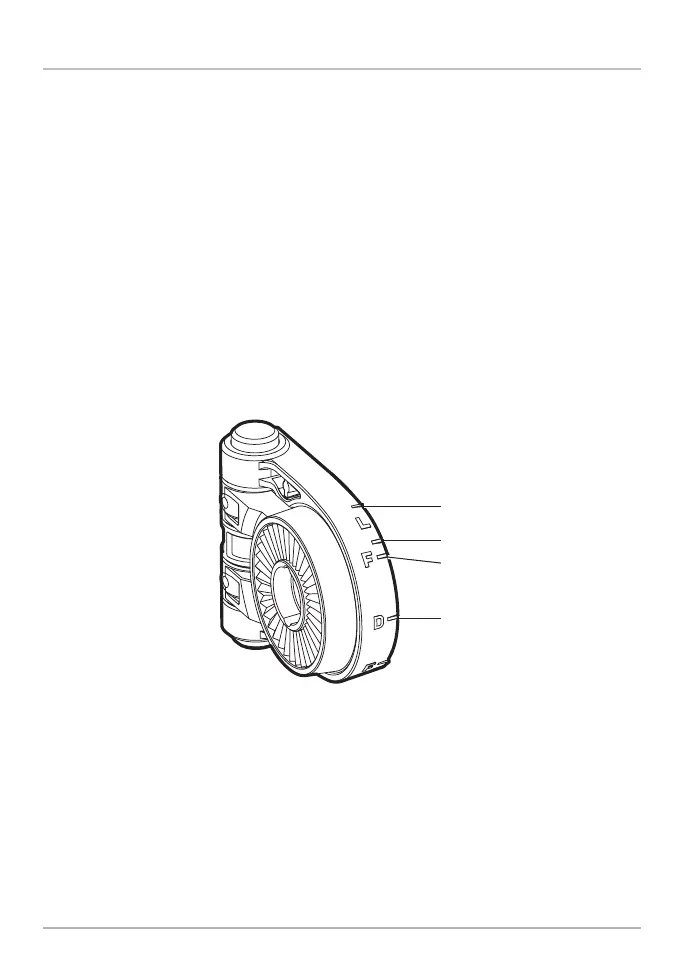

MEGA Live Mode Guides
landscape
landscape
forward
down
