12MEGA Live Installation
4. Install the Control Box
1. Align the control box over the mounting plate with the power connector inside
the larger cutout in the mounting plate (see illustration Installing the Control
Box).
2. Install the six (6) included 8-32 screws through the plate and into the control box
using the provided 9/64" Allen wrench. Hand tighten only!

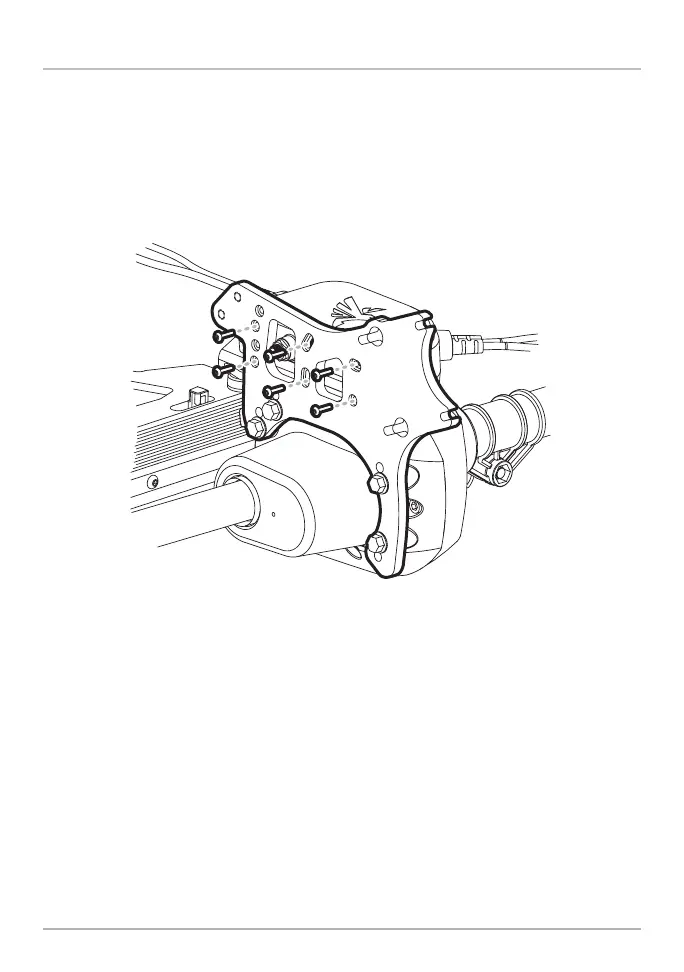

Installing the Control Box
