11 MEGA Live Installation
B. MEGA Live Dual Mounting Plate (for MEGA Live and MEGA 360 installation)
The dual mounting plate (separate purchase) will allow you to install your MEGA
Live Imaging TargetLock on one side of your trolling motor and your MEGA 360 on
the other.
1. If you have a trolling motor stabilizer installed, you will first need to uninstall
it. You will reinstall it after you have completed installation of your MEGA Live.
See the installation guide that was included with your trolling motor or visit
www.minnkotamotors.com for instructions.
2. Align the plate below the BowGuard. Line up the holes on the plate with the
threaded holes on the BowGuard.
3. Install the six (6) included 5/16-18 x 1" bolts through the plate and into the
BowGuard. Hand-tighten using a 9/16 nut driver until secure (see the illustration
Installing the Mounting Plate). Hand-tighten only!

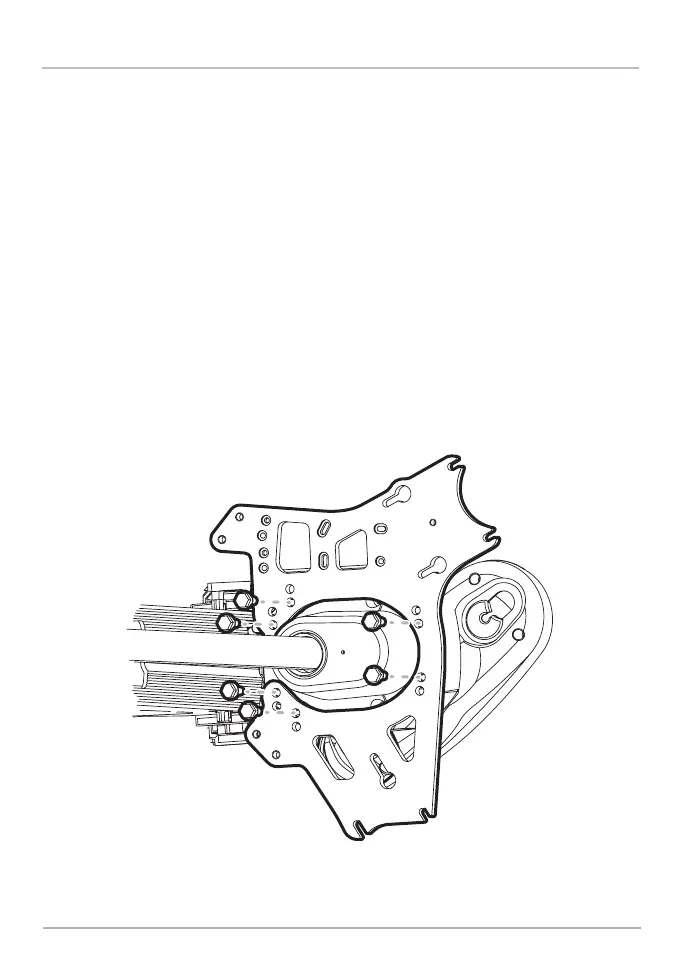

Installing the Dual Mounting Plate
