15 MEGA Live Installation
5. Secure the Landscape Mode mount to the transducer with one of the included
lock washers and 1/4-28 screws, using the provided hex bit. Hand tighten until
the lock washer is fully compressed (see the illustration Compressing the Lock
Washer), and then tighten an additional 1/4 turn. Hand tighten only!
WARNING! The screw and lock washer MUST be fully tightened. Failure
to do so may result in the transducer detaching from the Landscape Mode
mount in the water.
6. Feed the transducer cables through the shaft until the last molded anchor point
has just passed the shaft mount (see the illustration Routing the Cables).

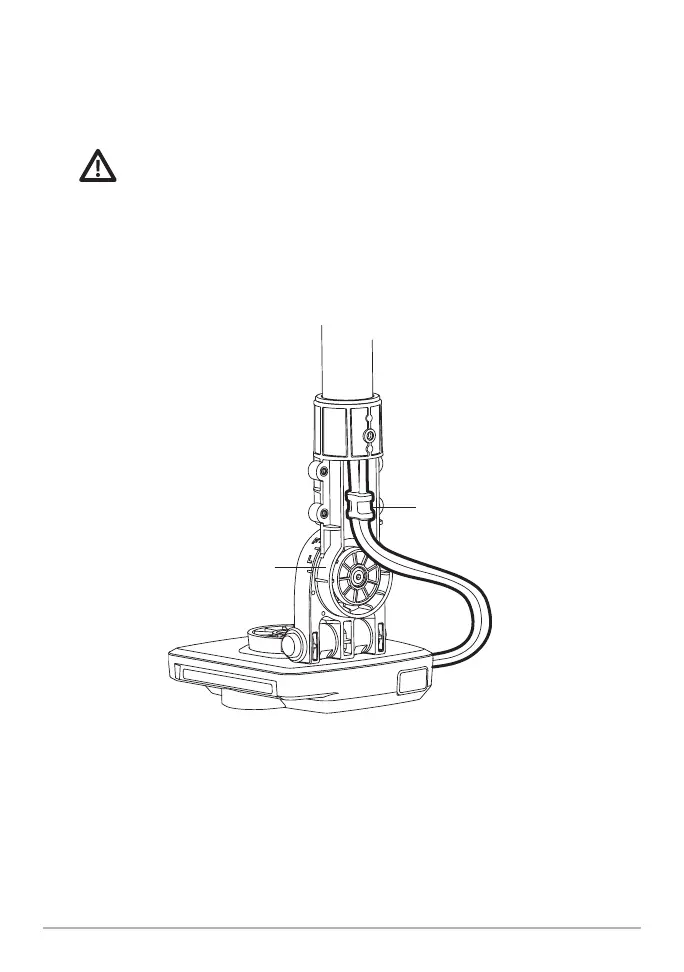

Routing the Cables
molded
anchor point
shaft
mount
7. Connect the cable cover to the shaft mount. The last molded anchor point is
keyed to fit into the base of the cable cover (see the illustration Connecting
the Cable Cover).
8. Secure the cable cover with the four (4) included 8-32 screws, using the
provided 9/64" Allen wrench. Hand tighten only!
