21 MEGA Live Installation

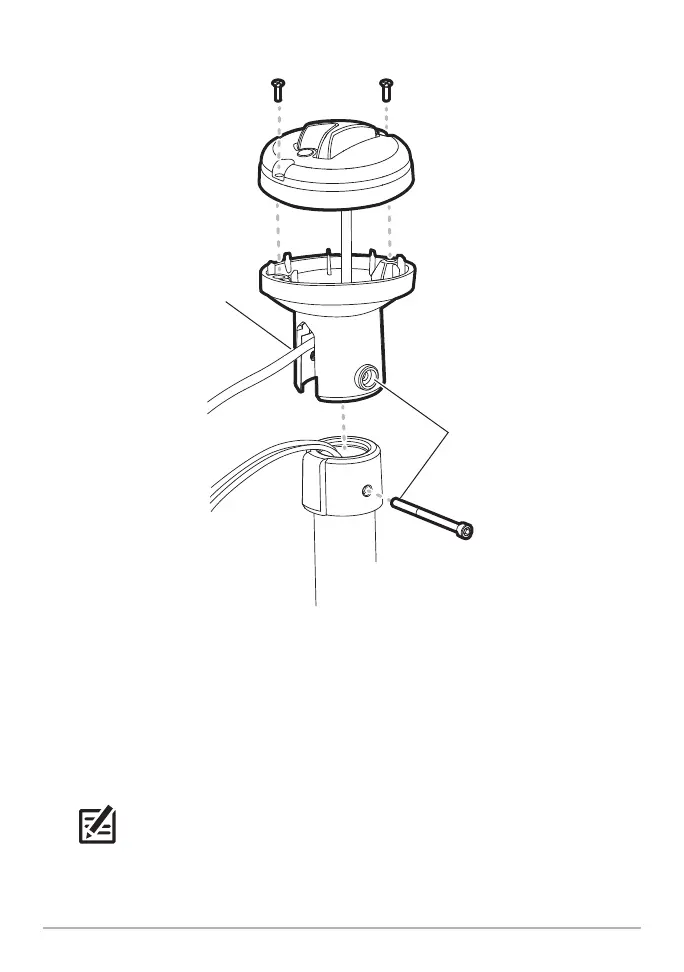

Connecting the Heading Collar and Mount
Align the cables so that
the TargetLock heading
sensor cable is on top
of the MEGA Live power
and ethernet cables.
Secure the heading
collar and mount before
securing the TargetLock
heading sensor to the
mount.
6. Slide the provided sleeving over all three cables, pushing one end into the
opening of the mount.
7. Adjust the sleeving until it is smooth and then secure both ends using one of
the included cable tie just outside of the TargetLock heading sensor mount and
a second cable tie around the body of the transducer ethernet connector.
8. Fold excess sleeving back on itself and secure it with cable ties.
NOTE: If you do not plan to remove your unit frequently, you may also use the
excess sleeving to cover all of the connectors.
