3. Turn the pod shaft until the rounded end of the transducer points in the
direction of travel. The centerline of the transducer should be parallel with the
centerline of the boat. See the illustration Aligning the Transducer.
rounded part
of transducer

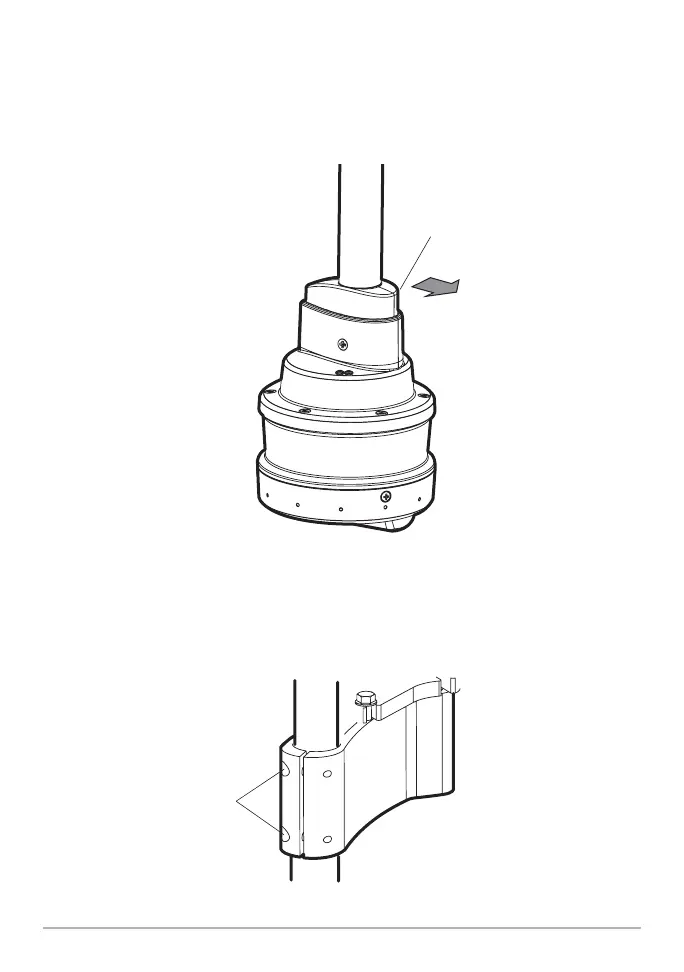

Aligning the Transducer
4. When the transducer position is finalized, hand-tighten the socket bolts equally
and completely so the pod shaft is fully secure and won’t drop or rotate during
operation. Tighten each bolt an additional 1/4 or 1/2 turn. Hand-tighten only!
socket bolts
Hand-Tightening the Socket Bolts
