45 Control Head Setup
GPS
HELIX Series
1. Turn on the power source from the main switch.
2. On the control head, press and hold the POWER key. If you are powering on
a control head in a multiple-control head Ethernet network, make sure your
ethernet switch(es) have power and your MEGA Live TargetLock is connected to
the switch.
3. When the Title screen is displayed, press the MENU key.
4. Select Normal. Press the RIGHT Cursor key.
5. Press and hold the VIEW key. Select System > Accessory Test. Confirm
that MEGA Live, MEGA Live TL and GPS + Heading Sensor are listed as
Connected. It will take up to two minutes for the equipment to be detected.
6. Press and hold the VIEW key. Select System > GPS Diagnostic View. Confirm
that External GPS is displayed and the Fix Type indicates Enhanced or 3D.
NOTE: If the GPS Diagnostic View or Accessory Test is not displayed in the
View Rotation, press the MENU key twice to open the Main Menu. Select the
Views tab > GPS Diagnostic View or Accessory Test. Change the setting for each
view to Visible.

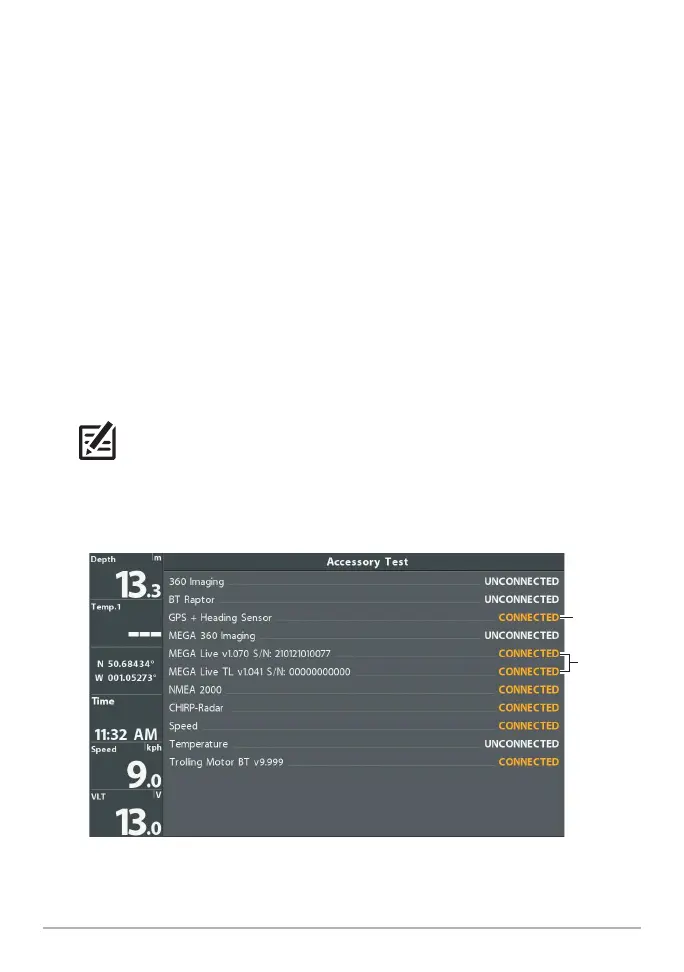

HELIX Accessory Test
MEGA Live
and MEGA
Live TL listed
as Connected
GPS Heading
Sensor listed
as Connected
