Change the Palette
The Palette menu changes the colors used to display the Mosaic. The palette can be changed while a Mosaic is being recorded, or
it can be applied to a saved Mosaic on the Chart View.
1. From the Mosaic menu, select Mosaic Options.
2. Select Palette.
3. Select a color palette.
Change the Drawing Mode
You can also change how the Mosaic is drawn on the Chart View while it is being recorded.
1. From the Mosaic menu, select Mosaic Options.
2. Select Drawing Mode.
3. Select one of the following options:
Overwrite
If the boat travels over the same area, the old data will be deleted, and the most recent data
will be displayed.
Blend
If the boat travels over the same area, AutoChart LIVE will mix the old data and new data on
the display.
Keep Maximum
If the boat travels over the same area, AutoChart LIVE will prioritize the strong returns over the
weak returns on the display.
Keep Nearest If the boat travels over the same area, AutoChart LIVE will display the data closest to the boat.

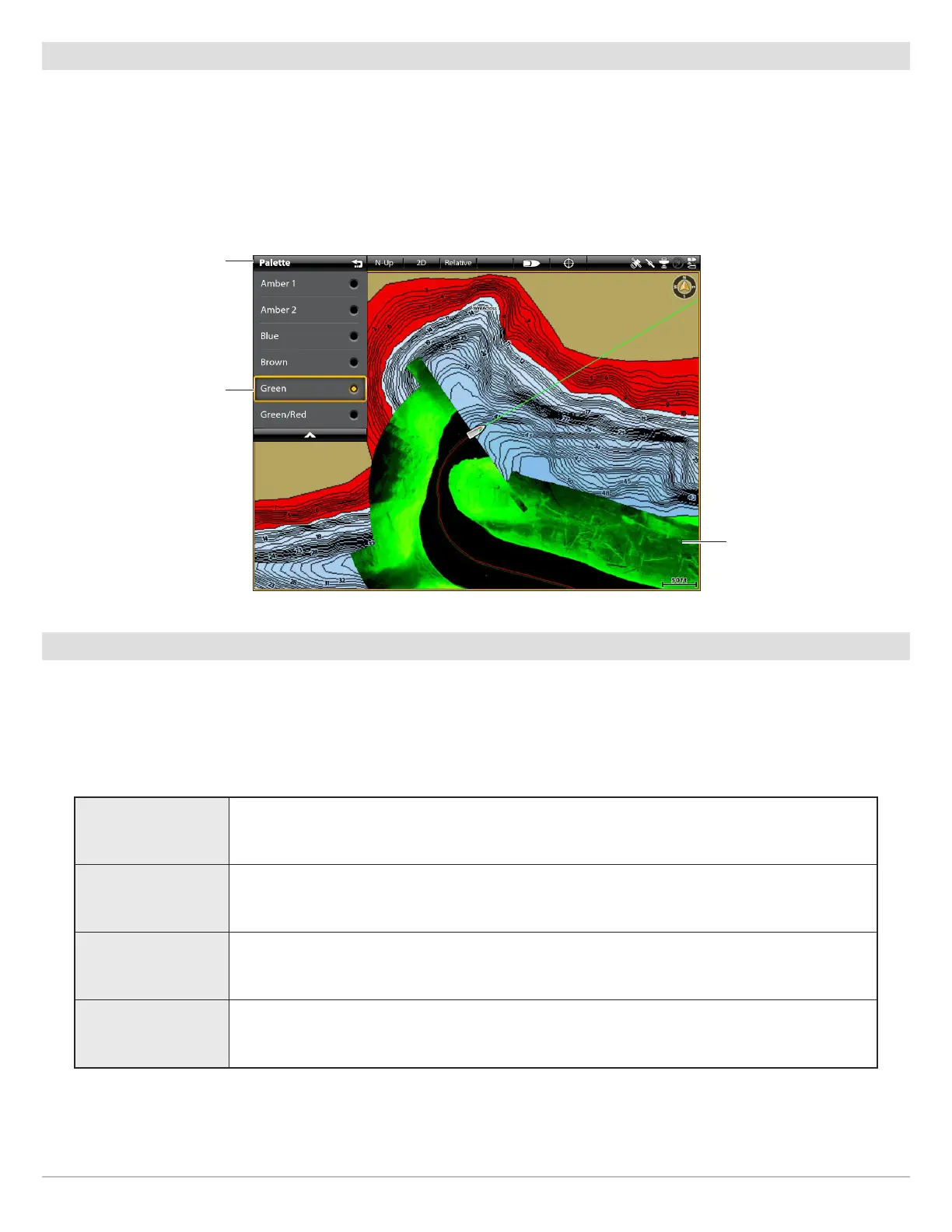

M
osaic Displayed with Palette set to Green
palette menu
green selected
Mosaic palette
set to green
Mosaic
