INSTALLATION
17

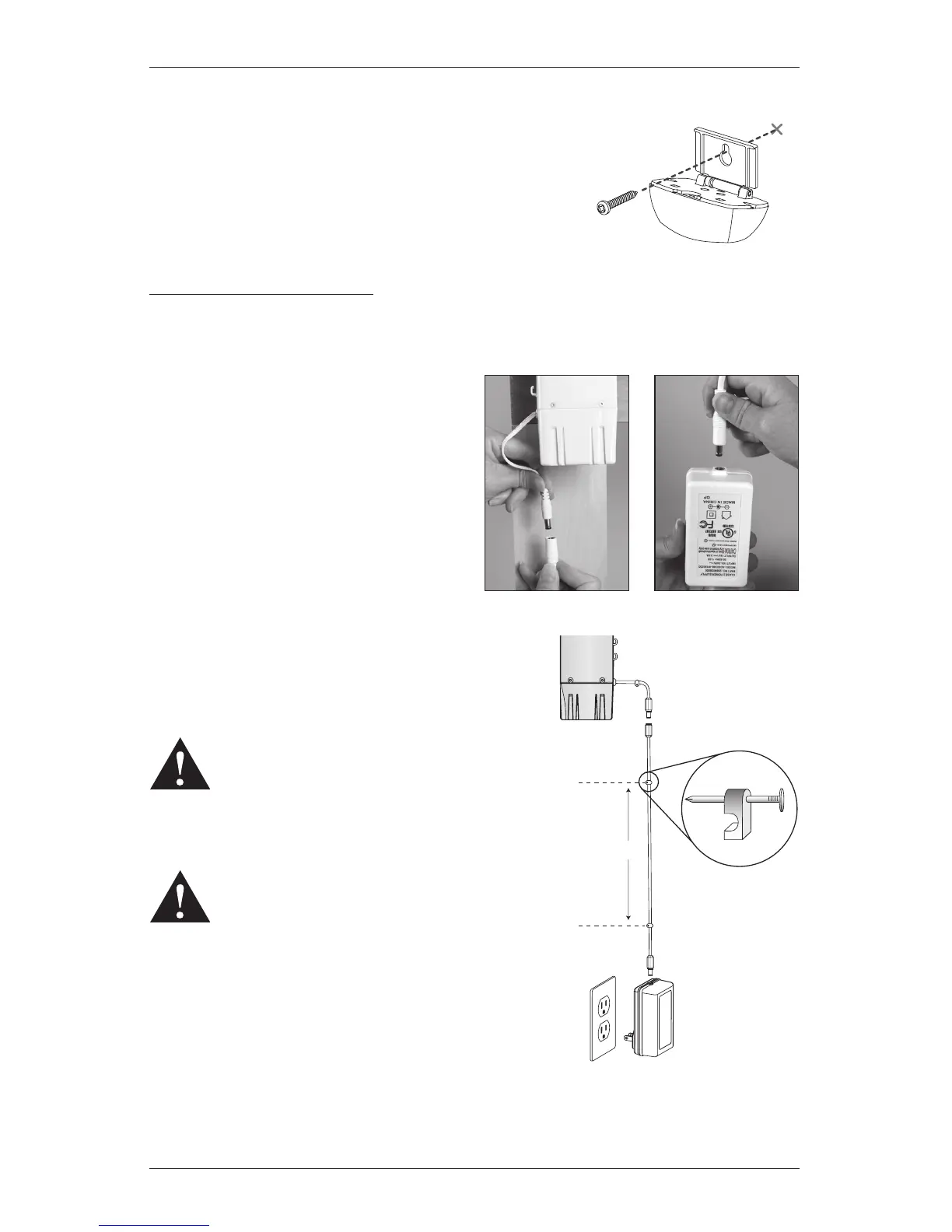

■ Using a single screw, mount the hinged flange to the wall
through the center hole on the flange. The satellite eye
should face down, as shown in theillustration.
■ After mounting the hinged flange, swivel the satellite eye
upward to the correct angle for receiving infrared signal
from the remote control.
Install the DC Power Supply
CautIon: Make sure the Platinum
™
satellite eye is plugged into the motor before connecting
the DC power supply.
■ Plug the power cable with the barrel
connector from the motor into the
extensioncable.
■ Plug the other end of the extension cable
into the DC power supply.
■ Secure the DC power supply wire using
the C-clips provided. Hide the wire behind
the fabric, making sure it does not impede
operation.
■ Space the C-clips approximately 15" apart along
the DC power supply wire, as shown.
■ Plug the DC power supply into the power source.
WarnIng: Keep cables and small parts
out of the reach of children. They can wrap
cables around their necks and STRANGLE.
They can also put small parts in their
mouths and CHOKE.
WarnIng: Electric shock and/or afire
hazard may occur if not properlyinstalled.
